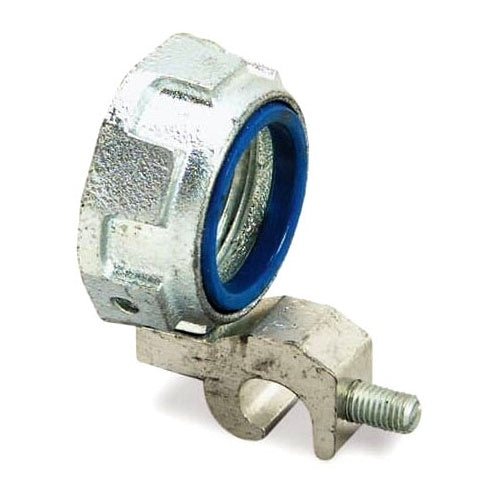

T&B 3879 4" Insulated Ground Bushing W/14-4 Range

Overview

T&B 3879 4" Insulated Ground Bushing W/14-4 Range

Product Specifications

• UPC: 78621003879
• Height: 0.98 Inch
• Material: Electro Zinc Plated Cast Malleable Iron (Body), Thermoplastic (Insulator)
• Standard Package: 5 per Outer Pack
• Approval: CSA, UL (Canada and US)
• Used On: IMC/Rigid Conduit
• Additional Information: Throat Diameter 3.623 Inch; Lug Length 1.31 Inch; Swing Radius 3.314 Inch
• Catalog Number: 3879
• Type: Threaded, Set Screw
• Trade Size: 4 Inch
• Wire Size: 14 to 4 AWG
• Lug Type: Lay-In, Tin Plated Aluminum
• Conductor Material: Aluminum/Copper
• Throat Type: Insulated
• Diameter: 5.328 Inch
• Catalog Description: 4 INCH THREADED INSULATED GROUNDING BUSHING, IRON, ELECTRO ZINC PLATED, WIRE RANGE 14 TO 4, THERMOPLASTIC INSULATOR FOR USE WITH RIGID/IMC CONDUIT
• Category: Rigid Conduit Fittings - Steel
• Full Technical Description: Threaded, Set Screw Type; Electro Zinc Plated Cast Malleable Iron (Body), Thermoplastic (Insulator) Material; 0.98 Inch; Imc/Rigid Conduit Used on; 14 to 4 AWG Wire Size; Aluminum/Copper Conductor Material; CSA, UL (Canada and Us) Approval; 5.328 Inch Diameter; 5 Per Outer Pack Standard Package; 4 Inch Trade Size; Insulated Throat Type; Lay-in, Tin Plated Aluminum Lug Type; Throat Diameter 3.623 Inch; Lug Length 1.31 Inch; Swing Radius 3.314 Inch
• Made In Usa: Yes
• Manufacturer: ABB, Inc. - Thomas & Betts
• Manufacturer Brand: T&B Corp.
• Sub Category: Grounding Bushing
• Unspsc: 39121312
• UPC 12 Digit: 786210038797
• SKU Name: t&b 3879
