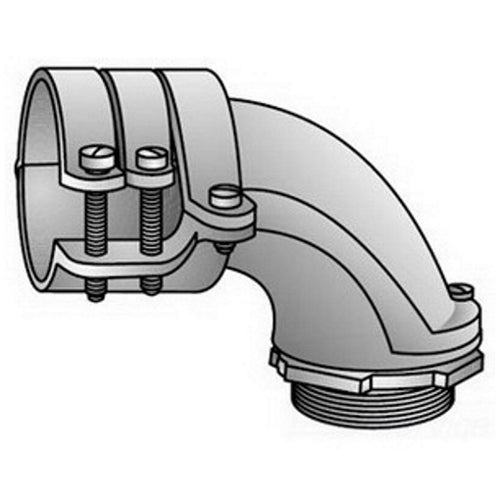

OZ-Gedney AC150 1-1/2" 90D Squeeze Flex Connector

Overview

OZ-Gedney AC150 1-1/2" 90D Squeeze Flex Connector

Product Specifications

• UPC: 78312601545
• Throat Type: Non-Insulated
• Material: Electro Zinc Plated Malleable Iron
• Approval: UL 514B, CSA C22.2
• Additional Information: Includes Locknut; Used On Armored Cable/Flexible Metal Conduit; Applicable Standard NEMA FB-1
• Catalog Number: AC150
• Model: AC
• Type: 90 Deg
• Trade Size: 1-1/2 Inch
• Cable Opening: Single
• Cable/Conduit Type: Armored Cable/Flexible Metal Conduit
• Cord Size: 1-12/16 to 2 Inch
• Installation: Squeeze
• Catalog Description: OZ-GEDNEY TYPE AC 90 DEG CENTER STOPPED SQUEEZE CONNECTOR, SIZE: 1-1/2 IN, CONNECTION: MALE NPS HUB X SCREW CLAMP, CONDUCTOR RANGE: 1-3/4 - 2 IN, MALLEABLE IRON, FINISH: ZINC ELECTROPLATED, 9/16 IN THREAD LENGTH, DIMENSION A: 3-13/16 IN, DIMENSION B
• Category: Liquid Tight Flex. Conduit Fittings
• Full Technical Description: 90 Deg Type; Electro Zinc Plated Malleable Iron Material; Squeeze Installation; UL 514B, CSA C22.2 Approval; 1-1/2 Inch Trade Size; 1-12/16 to 2 Inch Cord Size; Non-Insulated Throat Type; Armored Cable/Flexible Metal Conduit; Single Cable Opening; Includes Locknut; Used on Armored Cable/Flexible Metal Conduit; Applicable Standard NEMA FB-1; AC Model
• Manufacturer: O-Z Gedney
• Manufacturer Brand: O-Z Gedney
• Sub Category: Armored Cable/Flex Conduit Connector
• Unspsc: 39121419
• UPC 12 Digit: 783126015454
• SKU Name: ozg ac150

Resources

• Manufacturer Spec Sheet
• Product Spec Sheet
