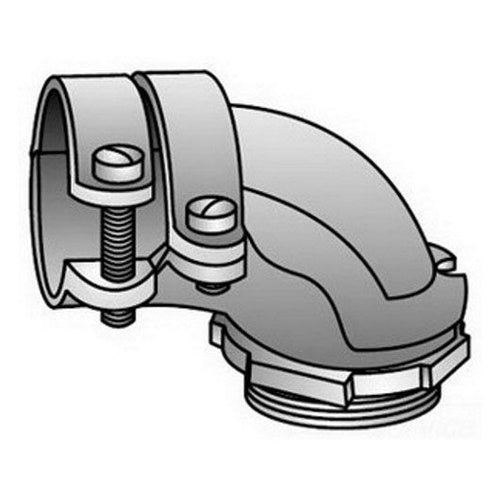

OZ-Gedney ACV-50 1/2" 90D 2-Screw Flex Connector

Overview

OZ-Gedney ACV-50 1/2" 90D 2-Screw Flex Connector

Product Specifications

• UPC: 78312602035
• Installation: (2) Screw, Clamp
• Throat Type: Non-Insulated
• Material: Electro Zinc Plated Malleable Iron
• Approval: UL 514B, CSA C22.2
• Additional Information: Includes Locknut; Used On Armored Cable/Flexible Metal Conduit; Applicable Standard Federal Specification W-F-406E, NEMA FB-1
• Catalog Number: ACV-50
• Brand Name: O-Z-Gedney
• Model: ACV
• Type: 90 Degree
• Trade Size: 1/2 Inch
• Cable Opening: Single
• Cable/Conduit Type: Armored Cable/Flexible Metal Conduit
• Cord Size: 25/32 to 61/64 Inch
• Catalog Description: OZ-GEDNEY TYPE ACV 90 DEG CENTER STOPPED 2-SCREW CLAMP CONNECTOR, SIZE: 1/2 IN, CONNECTION: MALE NPS HUB X SCREW CLAMP, CONDUCTOR RANGE: 25/32 - 61/64 IN, MALLEABLE IRON, FINISH: ZINC ELECTROPLATED, 7/16 IN THREAD LENGTH, DIMENSION A: 1-3/4 IN, DIM
• Category: Liquid Tight Flex. Conduit Fittings
• Full Technical Description: 90 Degree Type; Electro Zinc Plated Malleable Iron Material; (2) Screw, Clamp Installation; UL 514B, CSA C22.2 Approval; 1/2 Inch Trade Size; 25/32 to 61/64 Inch Cord Size; Non-Insulated Throat Type; Armored Cable/Flexible Metal Conduit; Single Cable Opening; Includes Locknut; Used on Armored Cable/Flexible Metal Conduit; Applicable Standard Federal Specification W-F-406E, NEMA FB-1; ACV Model
• Manufacturer: O-Z Gedney
• Manufacturer Brand: O-Z Gedney
• Sub Category: Armored Cable/Flex Conduit Connector
• Unspsc: 39121419
• UPC 12 Digit: 783126020359
• SKU Name: ozg acv50
