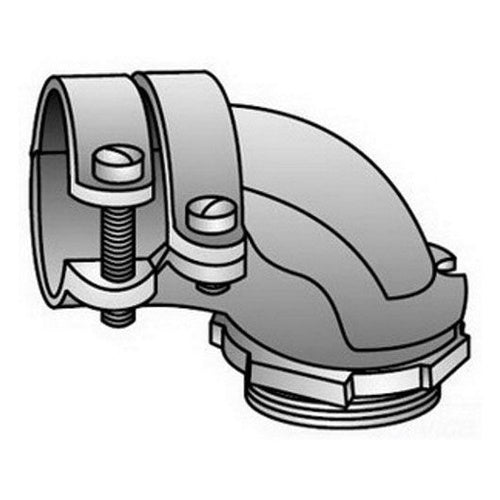

OZ-Gedney ACV-50T 1/2" 90D Insulated 2-Screw Connector

Overview

OZ-Gedney ACV-50T 1/2" 90D Insulated 2-Screw Connector

Product Specifications

• UPC: 78312602040
• Throat Type: Insulated
• Material: Electro Zinc Plated Malleable Iron
• Approval: UL 514B, CSA C22.2
• Additional Information: Includes Locknut; Used On Armored Cable/Flexible Metal Conduit; Applicable Standard NEMA FB-1
• Catalog Number: ACV-50T
• Model: ACV
• Type: 90 Deg
• Trade Size: 1/2 Inch
• Cable Opening: Single
• Cable/Conduit Type: Armored Cable/Flexible Metal Conduit
• Cord Size: 25/32 to 61/64 Inch
• Installation: (2) Screw, Clamp
• Catalog Description: OZ-GEDNEY TYPE ACV 90 DEG CENTER STOPPED 2-SCREW CLAMP CONNECTOR, SIZE: 1/2 IN, CONNECTION: MALE NPS HUB X SCREW CLAMP, CONDUCTOR RANGE: 25/32 - 61/64 IN, MALLEABLE IRON, FINISH: ZINC ELECTROPLATED, INSULATED THROAT, 7/16 IN THREAD LENGTH, DIMENSION A: 1-3/4 IN, DIMENSION B: 1-1/16 IN, THIRD PARTY CERTIFICATION: UL FILE NUMBER E-11852 (ARMORED CABLE AND FLEXIBLE METAL CONDUIT), HAZARDOUS LOCATION: NEC 501-4(B) CLASS I DIVISION II, NEC 350-5 (GROUNDING MEANS), CSA 9795 AND 11584 (ARMORED CABLE AND FLEXIBLE METAL CONDUIT), APPLICABLE THIRD PARTY STANDARDS: UL 514B, CSA C22.2 NO.18, FEDERAL SPECIFICATION W-F-406E, NEMA : FB-1, FOR ARMORED CABLE, FLEXIBLE METAL CONDUIT, NON-METALLIC AND SERVICE ENTRANCE CABLE
• Category: Liquid Tight Flex. Conduit Fittings
• Full Technical Description: 90 Deg Type; Electro Zinc Plated Malleable Iron Material; (2) Screw, Clamp Installation; UL 514B, CSA C22.2 Approval; 1/2 Inch Trade Size; 25/32 to 61/64 Inch Cord Size; Insulated Throat Type; Armored Cable/Flexible Metal Conduit; Single Cable Opening; Includes Locknut; Used on Armored Cable/Flexible Metal Conduit; Applicable Standard NEMA FB-1; ACV Model
• Manufacturer: O-Z Gedney
• Manufacturer Brand: O-Z Gedney
• Sub Category: Armored Cable/Flex Conduit Connector
• Unspsc: 39121419
• UPC 12 Digit: 783126020403
• SKU Name: ozg acv50t
