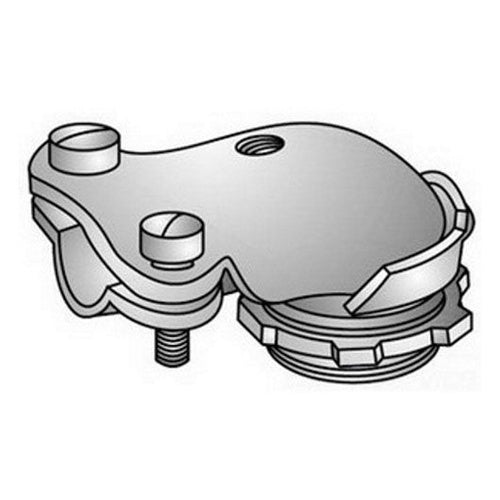

OZ-Gedney ACV-938 3/8" 90D 2-Screw Flex Connector

Overview

OZ-Gedney ACV-938 3/8" 90D 2-Screw Flex Connector

Product Specifications

• UPC: 78312602065
• Installation: (2) Screw, Clamp
• Throat Type: Non-Insulated
• Material: Electro Zinc Plated Malleable Iron
• Approval: UL 514B, CSA C22.2
• Additional Information: Includes Locknut; Used On Armored Cable/Flexible Metal Conduit; Applicable Standard NEMA FB-1
• Catalog Number: ACV-938
• Model: ACV
• Type: 90 Deg
• Trade Size: 3/8 Inch
• Knockout Size: 1/2 Inch
• Cable Opening: Single
• Cable/Conduit Type: Armored Cable/Flexible Metal Conduit
• Cord Size: 23/64 to 21/32 Inch
• Catalog Description: OZ-GEDNEY TYPE ACV 90 DEG CENTER STOPPED 2-SCREW CLAMP CONNECTOR, SIZE: 3/8 IN (1/2 IN KO), CONNECTION: MALE NPS HUB X SET SCREW, CONDUCTOR RANGE: 23/64 - 21/32 IN, MALLEABLE IRON, FINISH: ZINC ELECTROPLATED, 7/16 IN THREAD LENGTH, DIMENSION A: 1-5/16 IN, DIMENSION B: 13/16 IN, THIRD PARTY CERTIFICATION: UL FILE NUMBER E-11852 (ARMORED CABLE AND FLEXIBLE METAL CONDUIT), HAZARDOUS LOCATION: NEC 501-4(B) CLASS I DIVISION II, NEC 350-5 (GROUNDING MEANS), CSA 9795 AND 11584 (ARMORED CABLE AND FLEXIBLE METAL CONDUIT), APPLICABLE THIRD PARTY STANDARDS: UL 514B, CSA C22.2 NO.18, FEDERAL SPECIFICATION W-F-406E, NEMA : FB-1, FOR ARMORED CABLE, FLEXIBLE METAL CONDUIT, NON-METALLIC AND SERVICE ENTRANCE CABLE
• Category: Liquid Tight Flex. Conduit Fittings
• Full Technical Description: 90 Deg Type; Electro Zinc Plated Malleable Iron Material; (2) Screw, Clamp Installation; UL 514B, CSA C22.2 Approval; 3/8 Inch Trade Size; 1/2 Inch Knockout Size; 23/64 to 21/32 Inch Cord Size; Non-Insulated Throat Type; Armored Cable/Flexible Metal Conduit; Single Cable Opening; Includes Locknut; Used on Armored Cable/Flexible Metal Conduit; Applicable Standard NEMA FB-1; ACV Model
• Manufacturer: O-Z Gedney
• Manufacturer Brand: O-Z Gedney
• Sub Category: Armored Cable/Flex Conduit Connector
• Unspsc: 39121419
• UPC 12 Digit: 783126020656
• SKU Name: ozg acv938
