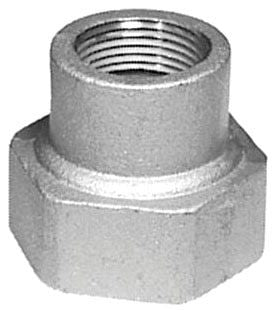

OZ-Gedney REC-2515 Hazard Location Reducer

Overview

OZ-Gedney REC-2515 Hazard Location Reducer

Product Specifications

• UPC: 78312647012
• Additional Information: Constructional Feature Dust Ignitionproof, Explosionproof; Finish Zinc Electroplated; Applicable Standard NEC 500 to 503/505
• Catalog Number: REC-2515
• Model: REC
• Large End Trade Size: 2-1/2 Inch
• Small End Trade Size: 1-1/2 Inch
• Material: Malleable Iron
• Size: 3-9/16 Inch Dia x 2-1/2 Inch L
• Enclosure: Class I Div 1 2 Group A B C D, Class II Div 1 2 Group E F G, Class III
• Approval: CSA C22.2
• Catalog Description: RIGID CONDUIT REDUCER COUPLING, LARGE END TRADE SIZE 2-1/2 INCH, SMALL END TRADE SIZE 1-1/2 INCH, MATERIAL ZINC ELECTROPLATED MALLEABLE IRON, SIZE 3-9/16 INCH DIA X 2-1/2 INCH L, ENCLOSURE CLASS I DIV 1 2 GROUP A B C D, CLASS II DIV 1 2 GROUP E F G, CLASS III, APPROVAL CSA C22.2, APPLICABLE STANDARD NEC 500 TO 503/505, CONSTRUCTIONAL FEATURE DUST IGNITIONPROOF, EXPLOSIONPROOF, USED ON THREADED IMC/RIGID METAL CONDUIT
• Category: Rigid Conduit Fittings - Steel
• Full Technical Description: Malleable Iron Material; 3-9/16 Inch Dia X 2-1/2 Inch L Size; 1-1/2 Inch Small End Trade Size; 2-1/2 Inch Large End Trade Size; CSA C22.2 Approval; Class I Div 1 2 Group A B C D, Class II Div 1 2 Group E F G, Class III Enclosure; Constructional Feature Dust Ignitionproof, Explosionproof; Finish Zinc Electroplated; Applicable Standard NEC 500 to 503/505; REC Model
• Manufacturer: O-Z Gedney
• Manufacturer Brand: O-Z Gedney
• Sub Category: Explosionproof Conduit Reducer Coupling
• Unspsc: 39131707
• UPC 12 Digit: 783126470123
• SKU Name: ozg rec2515

Resources

• Manufacturer Spec Sheet
