OZ-Gedney REC-5040 Hazard Location Reducer

Overview

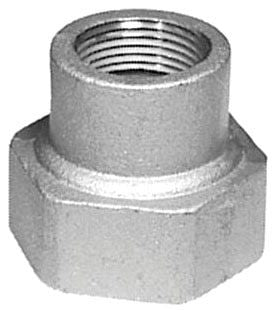

OZ-Gedney REC-5040 Hazard Location Reducer

Product Specifications

• UPC: 78312647015
• Catalog Number: REC-5040
• Model: REC
• Large End Trade Size: 5 INCH
• Small End Trade Size: 4 INCH
• Size: 6-13/16 INCH DIA X 4-3/4 INCH L
• Material: ZINC PLATED MALLEABLE IRON
• Approval: CSA C22.2
• Installation: THREADED
• Catalog Description: RIGID CONDUIT REDUCER COUPLING, LARGE END TRADE SIZE 5 INCH, SMALL END TRADE SIZE 4 INCH, MATERIAL ZINC ELECTROPLATED MALLEABLE IRON, SIZE 6-13/16 INCH DIA X 4-3/4 INCH L, ENCLOSURE CLASS I DIV 1 2 GROUP A B C D, CLASS II DIV 1 2 GROUP E F G, CLASS III, APPROVAL CSA C22.2, APPLICABLE STANDARD NEC 500 TO 503/505, CONSTRUCTIONAL FEATURE DUST IGNITIONPROOF, EXPLOSIONPROOF, USED ON THREADED IMC/RIGID METAL CONDUIT
• Category: Rigid Conduit Fittings - Steel
• Full Technical Description: Zinc Plated Malleable Iron Material; 6-13/16 Inch Dia X 4-3/4 Inch L Size; 4 Inch Small End Trade Size; 5 Inch Large End Trade Size; CSA C22.2 Approval; Installation Threaded; REC Model
• Manufacturer: O-Z Gedney
• Manufacturer Brand: O-Z Gedney
• Sub Category: Rigid/Emt Conduit Reducer
• Unspsc: 39131707
• UPC 12 Digit: 783126470154
• SKU Name: ozg rec5040

Resources

• Manufacturer Spec Sheet
