3M 7621-S-2 Cold Shrink QT-III Termination Kit, Tape/Wire Shield, UniShield, 5-8.7 kV, 2 Skirt

Overview

3M 7621-S-2 Cold Shrink QT-III Termination Kit, Tape/Wire Shield, UniShield, 5-8.7 kV, 2 Skirt

Product Specifications

• UPC: 05400742169
• UPC 12 Digit: 054007421696
• Brand: 3M
• Manufacturer: 3M Co.
• Manufacturer Brand: 3M Electrical Products
• Catalog Number: 7621-S-2
• Part Number: 7621-S-2
• Model: 7620-S
• Type: Cold Shrink
• Product Description: 3M 7621-S-2 Cold Shrink QT-III Termination Kit, Tape, Wire, UniShield, 5-8.7 kV, Insulation OD 0.44-0.89", 2 Skirt
• Voltage Rating: 5 to 8.7 kV
• BIL Rating: 95 kV
• Cable Type: Tape/Wire Shield; UniShield
• Cable Insulation Outer Diameter: 0.44 to 0.89 in
• Connector Type: Lug
• Conductor Size: 2 to 3/0 AWG at 5 kV; 4 to 2/0 AWG at 8 kV
• Insulator Type: 2 Skirted
• Insulator Material: Silicone Rubber
• Number Of Terminations: 3
• Number Of Conductors: 1
• Installed Length: 10.5 in

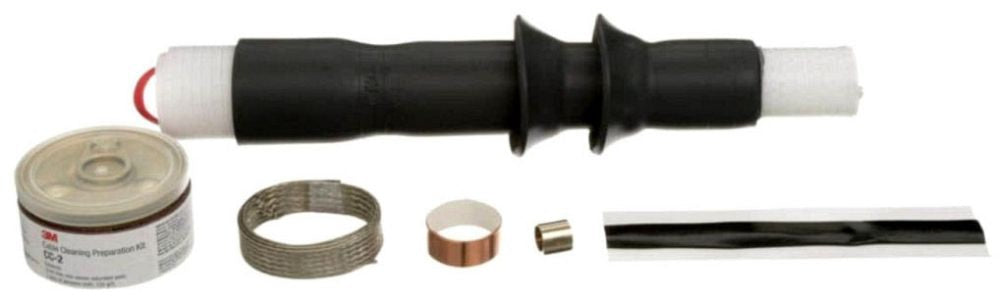

• Contents: 3 Hi-K Silicone Rubber Terminations; 3 Constant Force Springs; 3 Pre-Formed Ground Braids; 6 Mastic Seal Strips; 1/2 Copper Foil Shielding Tape Strip; 1 Cable Preparation Kit; 1 Instruction Sheet
• Applicable Standard: IEEE
• Made In USA: Yes
• Category: Splicing & Terminating Kits
• Sub Category: Polymer/Rubber Insulated Outdoor Termination Kit
• UNSPSC: 39120000
• Unique Product Key: 5762232
• Commodity Code Enhanced: 64130
• Catalog Description: 3M Cold Shrink QT-III 7620-S, 7680-S and 7690-S Series Termination Kit includes three 1-piece, 3-phase, skirted terminations. It provides a pliable, tight seal for tape shield, wire shield and UniShield power cables. The combination of a high-dielectric-constant material and silicone rubber insulation allows the termination to withstand voltages ranging from 5 to 35 kV.
• Full Technical Description: Cold Shrink Termination Kit for Tape/Wire Shield and UniShield Cable; Includes Hi-K Silicone Rubber Terminations, Constant Force Springs, Pre-Formed Ground Braids, Mastic Seal Strips, Copper Foil Shielding Tape Strip, Cable Preparation Kit and Instruction Sheet; Lug Connector Type; 5 to 8.7 kV Voltage Rating; 95 kV BIL Rating; 0.44 to 0.89 Inch Cable Insulation Outer Diameter; 2 Skirted Silicone Rubber Insulator Design; 3 Terminations; 10.5 Inch Installed Length; IEEE Applicable Standard
• SKU Name: 3m 7621-s-2 cold shrink qt iii termination kit
