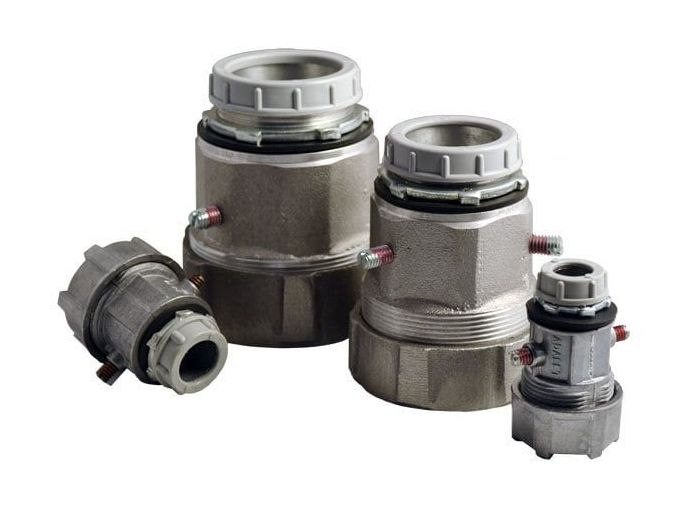

Adalet JAG-174-12 Straight Compression Fitting for Jacketed Cable, 1-1/4 in

Overview

Adalet JAG-174-12 Straight Compression Fitting for Jacketed Cable, 1-1/4 in

Product Specifications

• Brand: Adalet
• Manufacturer: Adalet
• Manufacturer Part Number: 42004
• Catalog Number: JAG-174-12
• Product Type: Cable Fitting
• Family Series: Adalet Fittings
• Description: Fitting Used for Terminating Jacketed Cable 1.56 to 1.74 in Dia
• Conduit/Cable Type: Metal Clad Cable
• Connection Type: Compression
• Angle: Straight
• Trade Size: 1-1/4 in
• Hub Size: 1-1/4 in
• Cable Diameter Range: 1.56 to 1.74 in
• Material: Aluminum Alloy
• Composition: Metallic
• Hazardous Location: No
• Approvals: CSA; UL
• Net Weight: 0 lb
• Gross Weight: 0.66 lb
• Application: Terminating Jacketed Metal Clad Cable, Compression Cable Connections, Industrial Cable Fitting Installations and Electrical Raceway Applications
• Category: Cable Fittings
• Catalog Description: Adalet JAG-174-12 is a straight compression fitting designed for terminating jacketed metal clad cable with a 1.56 to 1.74 inch cable diameter range.
• Full Technical Description: Adalet JAG-174-12 Straight Compression Cable Fitting; Designed for Terminating Jacketed Metal Clad Cable; Fits 1.56 to 1.74 Inch Cable Diameter; 1-1/4 Inch Trade Size and Hub Size; Aluminum Alloy Metallic Construction; Straight Angle Compression Connection; UL and CSA Approved for Industrial Cable Fitting Applications
• Manufacturer Brand: Adalet
• Sub Category: Jacketed Cable Compression Fittings
• SKU Name: adalet jag-174-12 straight compression cable fitting
