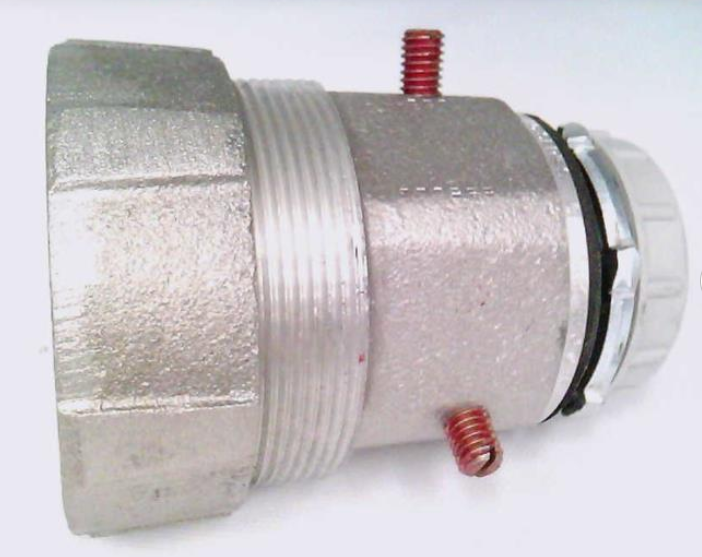

Adalet JAG-174-15 Type JAG Armored Cable Connector for Jacketed MC or TECK Cable

Overview

Adalet JAG-174-15 Type JAG Armored Cable Connector for Jacketed MC or TECK Cable

Product Specifications

• Brand: Adalet
• Manufacturer: Adalet
• Catalog Number: JAG 174-15
• Part Number: JAG 174-15
• Product Name: JAG17415
• Product Type: Armored Cable Connector
• Connector Type: Type JAG Cable Connector
• Description: Armored Cable Connector, Type JAG
• Cable Type: Aluminum Jacketed Type MC Cable; Canadian TECK Type Cable
• Diameter Over Jacket: 1.60 in Min to 1.74 in Max
• Minimum Diameter Over Jacket: 1.60 in
• Maximum Diameter Over Jacket: 1.74 in
• Category: Components
• Sub Category: Connector/Terminal/Pin
• Part Status: Discontinued by Manufacturer
• Weight: 1.00 lb
• Factory Warranty: May Not Apply
• Application: Terminating Aluminum Jacketed Type MC Cable, Canadian TECK Cable Connections, Armored Cable Installations and Industrial Electrical Fitting Applications
• Catalog Description: Adalet JAG-174-15 is a Type JAG armored cable connector designed for aluminum jacketed Type MC or Canadian TECK type cables with a 1.60 to 1.74 inch diameter over jacket range.
• Full Technical Description: Adalet JAG-174-15 Type JAG Armored Cable Connector; Designed for Aluminum Jacketed Type MC Cable and Canadian TECK Type Cable; Fits Cable Diameter Over Jacket from 1.60 Inch Minimum to 1.74 Inch Maximum; Suitable for Industrial Armored Cable Termination, Cable Connector and Electrical Fitting Applications; Discontinued by Manufacturer with Radwell 2-Year Warranty Included
• Manufacturer Brand: Adalet
• Sub Category: Armored Cable Connectors
• SKU Name: adalet jag-174-15 armored cable connector
