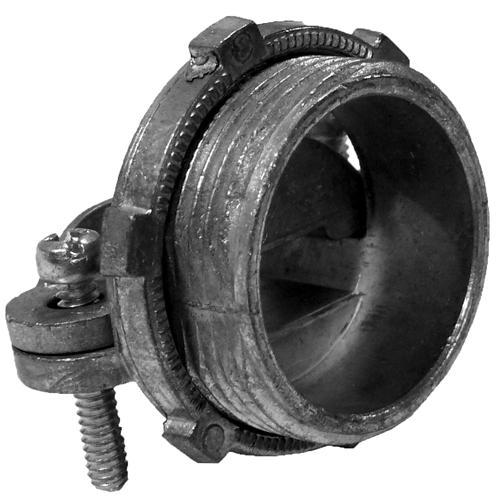

Appleton C1250 1-1/4" Die-Cast Zinc Service Entrance Cable Connector

Overview

Appleton C1250 1-1/4" Die-Cast Zinc Service Entrance Cable Connector

Product Specifications

• Catalog Description: Two-Screw Service Entrance Cable Connector; 1-1/4 Inch Knockout Size; Die-Cast Zinc Construction; Locknut and Clamp Included; For Oval Type SE or USE Cable.
• Category: CGB/Cable Glands/Cord Grips
• Full Technical Description: Service Entrance Cable Connector; Appleton NEER Series; Two-Screw Design; 1-1/4 Inch Knockout Size; Die-Cast Zinc Material; 1.87 Inch Diameter x 1.31 Inch Length; Suitable for 3 to 3/2 to 3 AWG Oval Service Entrance Cable; Designed to Terminate Oval Type SE or Type USE Cable; Male NPS Hub Threads; Furnished with Locknut; Clamp Included; UL 514B Listed; UL File Number E25015; CSA C22.2 No. 18.3 Certified; CSA File Number 208044
• Manufacturer: Appleton Electric
• Manufacturer Brand: Appleton
• Sub Category: Service Entrance Cable Connector
• Unspsc: 39121311
• UPC 12 Digit: 687855112500
• SKU Name: C1250

Resources

Manufacturer Specification Sheet
