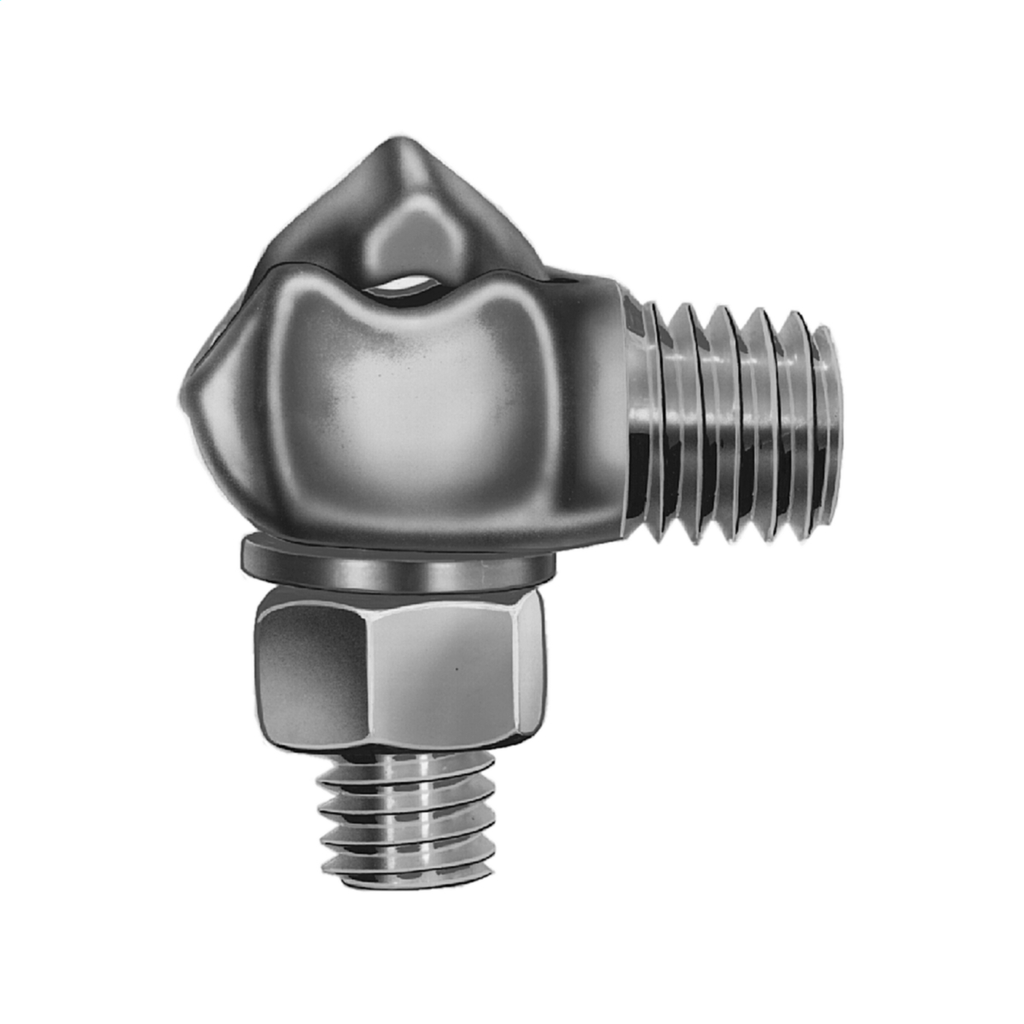

Anderson GTCS41 Transformer Tank Grounding Clamp for 6 AWG Solid to 250 MCM Copper Conductors

Overview

Anderson GTCS41 Transformer Tank Grounding Clamp for 6 AWG Solid to 250 MCM Copper Conductors

Product Specifications

• UPC: 096359313854
• UPC 12 Digit: 096359313854
• Brand: Anderson
• Manufacturer: Anderson
• Manufacturer Part Number: GTCS41
• Product Type: Transformer Tank Grounding Clamp
• Description: Clamp for grounding transformer tanks, supports 6 AWG solid to 250 MCM copper conductors
• Style: Eyebolt
• Material: Bronze
• Conductor Type: Copper
• Weight: 0.588 lb
• Dimensions:
  • Height: 2.62 in
  • Length: 2.50 in
  • Width: 1.625 in
• Category: Electrical Accessories / Grounding & Bonding
• Application: Grounding transformer tanks in industrial and utility installations
• Full Technical Description: Anderson GTCS41 Transformer Tank Grounding Clamp; bronze construction for durability; supports 6 AWG solid to 250 MCM copper conductors; eyebolt style for secure attachment to transformer tanks; compact design with 2.62 in height, 2.5 in length, and 1.625 in width; ideal for grounding applications in industrial and utility environments
• Manufacturer Brand: Anderson
• SKU Name: anderson gtcs41 transformer tank grounding clamp

Resources

• Manufacturer Specification Sheet
