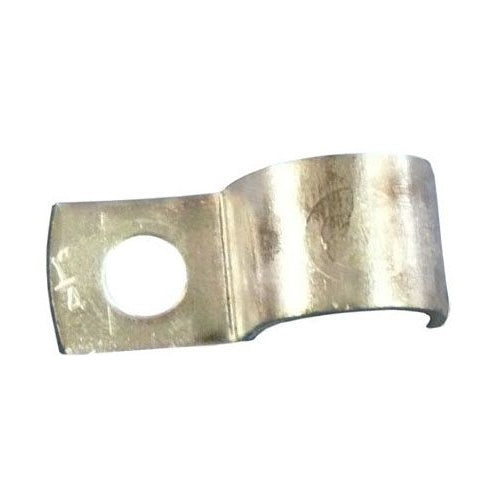

Appleton CL-300 3" 1-Hole Steel Conduit Strap

Overview

Appleton CL-300 3" 1-Hole Steel Conduit Strap

Product Specifications

• UPC: 78138119445
• Used On: Rigid Metal Conduit/IMC
• Catalog Number: CL-300
• Type: 1-Hole
• Trade Size: 3 Inch
• Hole/Bolt Size: 0.56 Inch
• Width: 1.25 Inch
• Height: 3.66 Inch
• Material: Zinc Electroplated Steel
• Approval: CSA C22.2
• Catalog Description: ONE HOLE CLAMP, CABLE SIZE: 3 IN, CABLE TYPE: RMC, IMC, EMT, MATERIAL: STEEL, FINISH: ZINC ELECTROPLATE, DIMENSIONS: 1-1/4 IN WIDTH X 3.66 IN HEIGHT, STANDARD: CSA C22.2 NO. 18.4, CSA 065178, FOR USED TO SUPPORT RUNS OF RMC, IMC AND EMT
• Category: Rigid Conduit Fittings - Steel
• Full Technical Description: 1-Hole Type; Zinc Electroplated Steel Material; 1.25 Inch; 3.66 Inch; Imc/Rigid Metal Conduit Used on; CSA C22.2 Approval; 3 Inch Trade Size; 0.56 Inch Hole/Bolt Size; Application Commercial/Industrial, Hazardous Location; Applicable Standard CEC
• Made In Usa: Yes
• Manufacturer: Appleton Electric
• Manufacturer Brand: Appleton Electric
• Sub Category: Rigid/EMT Conduit Strap
• Unspsc: 39121701
• UPC 12 Digit: 781381194457
• SKU Name: app cl300

Resources

• Product Spec Sheet
• Manufacturer Spec Sheet
