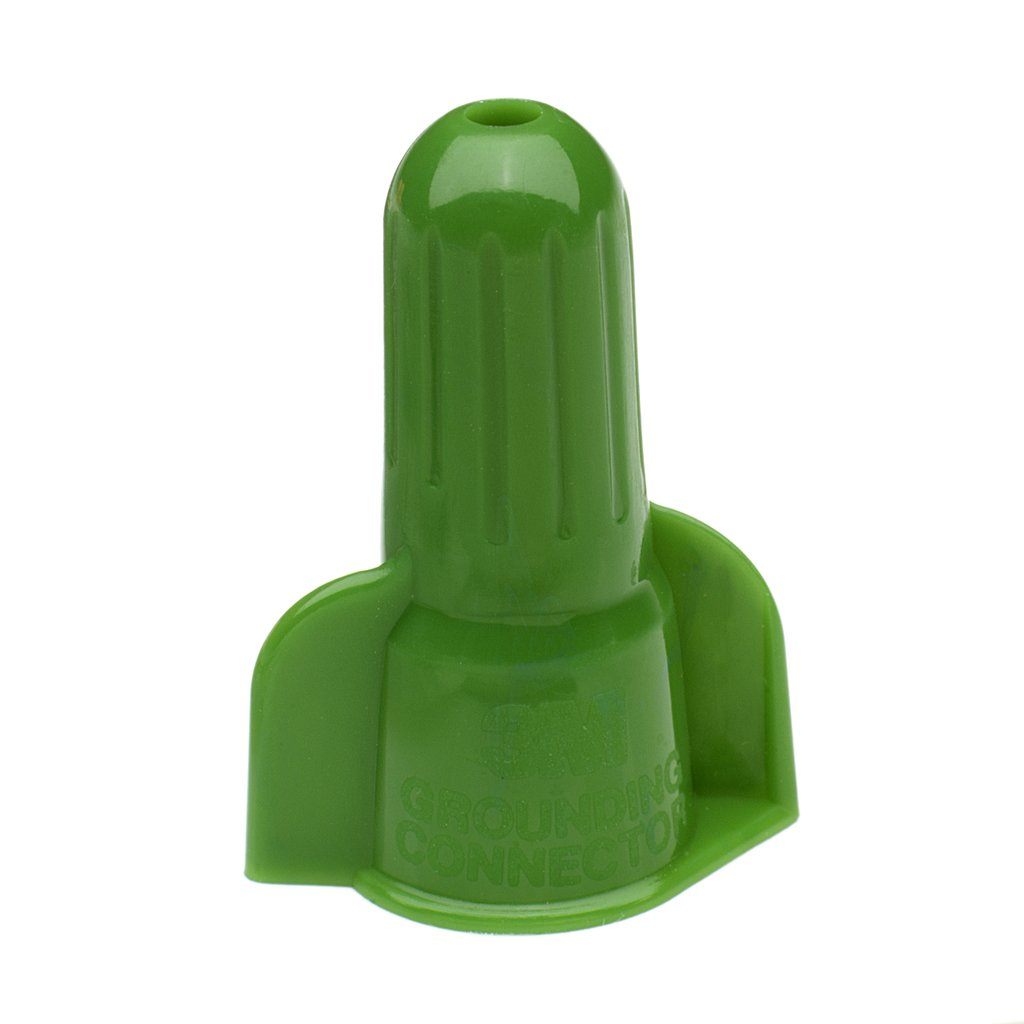

3M 512GB0X Green Grounding Wire Connector (100/Pouch)

Overview

3M 512GB0X Green Grounding Wire Connector (100/Pouch)

Product Specifications

• UPC: 051128590980
• Brand: 3M
• Manufacturer Part Number: 512G-POUCH
• Catalog Number: 512GB0X
• Type: Wing Wire Connector
• Connector Type: Grounding Wire Connector
• Color: Green
• Conductor Material: Copper
• Insulation: Insulated
• Minimum Conductor Size: (2 to 5) #14 AWG
• Maximum Conductor Size: (2 to 3) #10 AWG
• Voltage Rating: 600 Volt; 1000 Volt (Lighting Fixture/Luminaries/Sign)
• Operating Temperature: +221 Deg F
• Packaging: 100 Per Pouch
• Classification: Wire Nuts
• UNSPSC: 39121445
• Weight Per Unit: 0.01 lb
• Application: Grounding Connections, Electrical Wiring, Commercial, Industrial and Residential Electrical Installations
• Category: Compression Connectors and Terminals
• Full Technical Description: Insulated Green Grounding Wire Connector; Wing Style Twist-On Design; Copper Conductor Compatibility; Supports #14 AWG to #10 AWG Wire Combinations; 600 Volt Standard Rating and 1000 Volt Fixture Rating; High Temperature Performance up to 221 Deg F; Suitable for Commercial, Industrial and Residential Grounding Applications
• Manufacturer: 3M
• Manufacturer Brand: 3M
• Sub Category: Wire Nuts
• SKU Name: 3m 512g pouch grounding connector

Resources

• Manufacturer Spec Sheet
