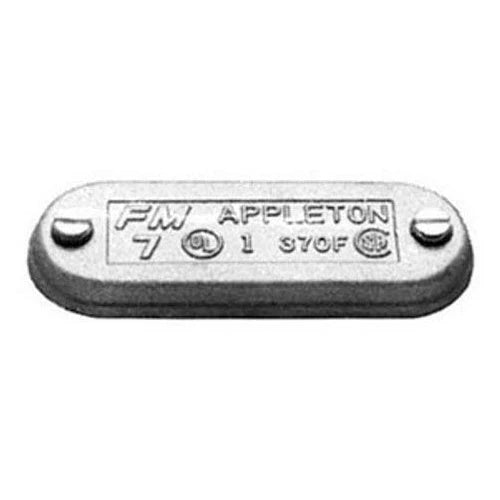

Appleton 470FG FM7 Conduit Body Cover with Integral Gasket

Overview

Appleton APP470FG FM7 Form 7 Conduit Body Cover with Integral Gasket, 1-1/4 Inch

Product Specifications

• Catalog Description: FM7 Unilets Blank Cover with Integral Gasket, 1-1/4 Inch Trade Size, Form 7, Cast Grayloy Iron, Triple-Coat Gray Finish
• Category: Conduit Cover
• Full Technical Description: Clip Cover with Integral Form-In-Place Urethane Gasket; Corrosion and Weather Resistant Type; 1-1/4 Inch Trade Size; Form 7 Form Type; Cast Grayloy Iron Material; Zinc Electroplated, Chromate, and Epoxy Powder Coated Triple-Coat Finish; Gray Color; FM7 and Wedge-Lok Brand Design; Unilet Brand Reference; Enclosure Rating Class I Division 2 and NEMA 3R; Operating Temperature Rating -65 to 302 Degrees F; Used on IMC and Rigid Conduit; Suitable for Commercial, Industrial, Hazardous, and Wet Location Applications; UL 514A/B and CSA C22.2 Approved; Applicable Standard NEC/CEC
• Made In Usa: Yes
• Manufacturer: Appleton Electric
• Manufacturer Brand: Appleton Electric
• Sub Category: Conduit Body Cover
• Unspsc: 39131708
• UPC 12 Digit: 781381167758
• SKU Name: APP470FIG

Resources

Manufacturer Specification Sheet
