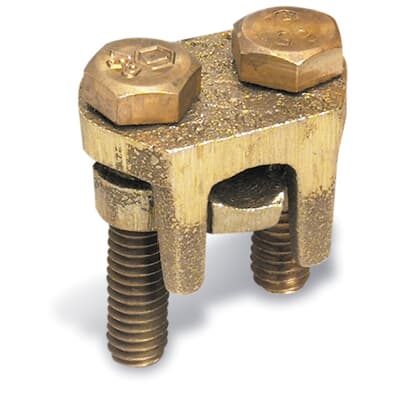

BLACKBURN 2B1000X One-Piece Two-Bolt Copper Connector

Overview

BLACKBURN 2B1000X One-Piece Two-Bolt Copper Connector Without Spacer

Product Specifications

• Catalog Description: ONE-PIECE TWO-BOLT CONNECTOR WITHOUT SPACER, FOR COPPER CONDUCTORS ONLY
• Category: Compression Connectors and Terminals
• Full Technical Description: Type 2BX One-Piece Two-Bolt Connector Without Spacer; Designed for Copper Conductors Only; Single-Piece Construction; Castings and Bolts Made of High-Strength Copper Alloy; Extra-Long Bolt Allows Top Casting to Swing Free Over Two Conductors of Maximum Range; Neoprene Washer Holds Free Bolt in Place During Installation; Main Conductor Range 1000 kcmil to 750 kcmil; Tap Conductor Range 1000 kcmil to 2 Solid; Conductor Diameter Maximum 2.304 Inch and Minimum 1.255 Inch; Bolt Head 15/16 Inch; Dimensions 2-31/32 Inch L x 3-1/4 Inch H x 5/8 Inch E; UL 486A Listed for Copper Conductors
• Made In Usa:
• Manufacturer: Blackburn
• Manufacturer Brand: Blackburn
• Sub Category: Two-Bolt Copper Connector
• Unspsc:
• UPC 12 Digit:
• SKU Name: 2B1000X

Resources

Manufacturer Specification Sheet
