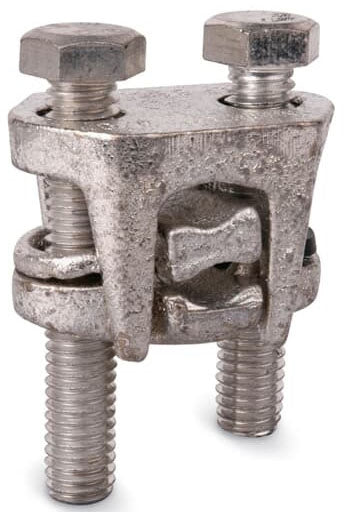

Blackburn 2B20PW Two-Bolt Connector with Spacer

Overview

BLKBRN 2B20PW Two-Bolt Connector with Spacer

Product Specifications

• Catalog Description: TWO-BOLT CONNECTOR WITH SPACER, FOR COPPER/ACSR CONDUCTORS, 1/2 INCH BOLT SIZE
• Category: Compression Connectors and Terminals
• Full Technical Description: Two-Bolt Connector with Spacer; Designed for Copper and ACSR Conductors; Plated Finish; 1/2 Inch Bolt Size; Minimum Run Conductor Size 2 AWG ACSR or 2 AWG Stranded Copper; Maximum Run Conductor Size 2/0 AWG ACSR or 2/0 AWG Stranded Copper; Minimum Tap Conductor Size 8 AWG ACSR, 8 AWG Solid Copper, or 2/0 AWG Stranded Copper; Maximum Tap Conductor Size 8 AWG Solid Copper, 2/0 AWG ACSR, or 2/0 AWG Stranded Copper; Two-Bolt with Spacer Installation; UL 486-A Approved
• Made In Usa:
• Manufacturer: ABB, Inc. - Thomas & Betts
• Manufacturer Brand: T&B Blackburn
• Sub Category: Mechanical Single Cable Tap
• Unspsc: 39121408
• UPC 12 Digit: 783786400232
• SKU Name: 2B20PW

Resources

Manufacturer Specification Sheet

Product Specification Sheet
