318AMP 31818 SOLISTRAND 22-16 AWG Butt Splice18 AMP

Overview

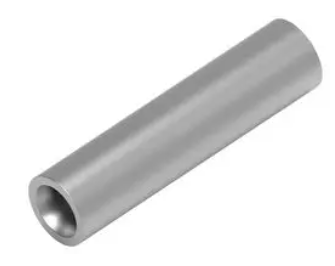

AMP 31818 SOLISTRAND 22-16 AWG Uninsulated Butt Splice

Product Specifications

• Catalog Description: BUTT SPLICE, 22-16 AWG, UNINSULATED, SERRATED, COPPER, TIN PLATED
• Category: Compression Connectors and Terminals
• Full Technical Description: Butt Splice Type; SOLISTRAND Series; Designed for 22 to 16 AWG Copper Wire; Compatible with Solid and Stranded Discrete Wire; Uninsulated Construction; Non-Insulation Support Retention Type; Serrated Splice Feature; 16 Serrations; Closed Barrel Type; Copper Contact Base Material; Tin Terminal Plating; 100 Microinch Terminal Plating Thickness; 14.68 mm [0.578 Inch] Product Length; 3.58 mm [0.141 Inch] Outside Diameter; 1.55 mm [0.061 Inch] Barrel Inside Diameter; 0.79 mm [0.031 Inch] Terminal Material Thickness; Wire Size Range 0.26 to 1.65 mm² or 509 to 3260 CMA; Loose Piece Packaging
• Made In Usa:
• Manufacturer: TE Connectivity / AMP
• Manufacturer Brand: AMP
• Sub Category: Butt Splice
• Unspsc:
• UPC 12 Digit:
• SKU Name: 31818
