AMP 31819 SOLISTRAND 16-14 AWG Butt Splice

Overview

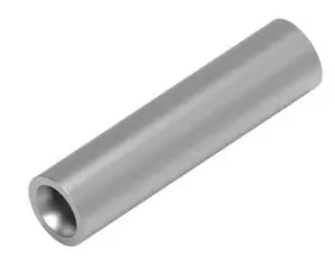

AMP 31819 SOLISTRAND 16-14 AWG Uninsulated Butt Splice

Product Specifications

• Catalog Description: BUTT SPLICE, 16-14 AWG, UNINSULATED, SERRATED, COPPER, TIN PLATED
• Category: Compression Connectors and Terminals
• Full Technical Description: Butt Splice Type; SOLISTRAND Series; Designed for 16 to 14 AWG Copper Wire; Compatible with Solid and Stranded Discrete Wire; Uninsulated Construction; Non-Insulation Support Retention Type; Serrated Splice Feature; 16 Serrations; Closed Barrel Type; Copper Contact Base Material; Tin Terminal Plating; 100 Microinch Terminal Plating Thickness; 14.4 mm [0.567 Inch] Product Length; 4.19 mm [0.165 Inch] Outside Diameter; 2.16 mm [0.085 Inch] Barrel Inside Diameter; 0.84 mm [0.033 Inch] Terminal Material Thickness; Wire Size Range 1.25 to 2 mm² or 2050 to 5180 CMA; Loose Piece Packaging
• Made In Usa:
• Manufacturer: TE Connectivity / AMP
• Manufacturer Brand: AMP
• Sub Category: Butt Splice
• Unspsc:
• UPC 12 Digit:
• SKU Name: 31819

Resources
Manufacturer Specification Sheet
