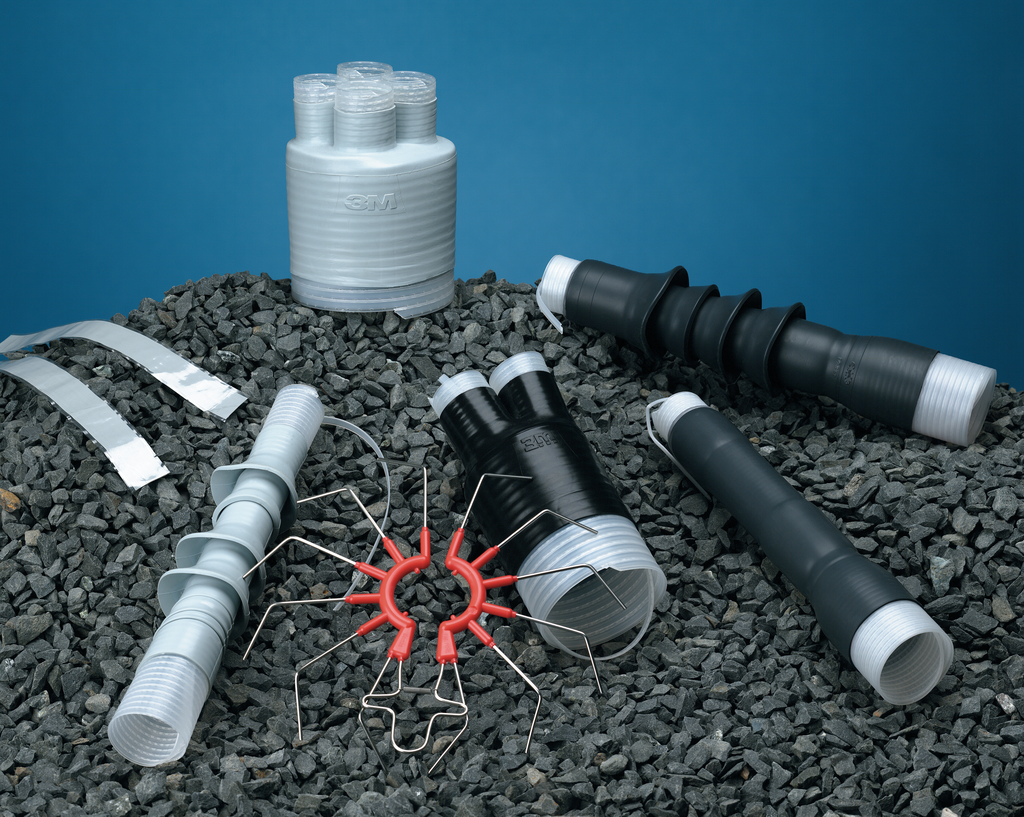

3M 7622-T-110 Cold Shrink QT-III Non-Skirted Indoor Termination Kit, 5-15 kV, 110 BIL

Overview

3M 7622-T-110 Cold Shrink QT-III Non-Skirted Indoor Termination Kit, 5-15 kV, 110 BIL

Product Specifications

• UPC: 05400741760, 054007417606, 00054007417606
• Brand: 3M
• Manufacturer: 3M Electrical Products
• Catalog Number: 7622-T-110
• Type: QT-III Cold Shrink Termination Kit
• Item Type: Insulated Indoor Termination Kit
• Application: Indoor and Weather-Protected Cable Termination
• Voltage Rating: 5 to 15 kV
• BIL Rating: 110 kV
• Cable Insulation Outer Diameter: 0.64 to 1.08 in
• Cable Type: Tape Shield; Wire Shield; UniShield®
• Conductor Size: 1 AWG; 1/0 AWG; 2 AWG; 2/0 AWG; 250 kcmil; 3/0 AWG; 300 kcmil; 350 kcmil; 4/0 AWG; 400 kcmil
• Conductor Size By Voltage: 4/0 AWG to 400 kcmil at 5 kV; 3/0 AWG to 300 kcmil at 8 kV; 2 AWG to 4/0 AWG at 15 kV
• Insulator Type: Non-Skirted
• Insulator Material: Silicone Rubber
• Number Of Terminations: 3
• Package Quantity: 1 Kit
• Country Of Origin: United States
• Made In USA: Yes
• Standard: IEEE
• Special Features: Includes 3 Non-Skirted, 1-Piece, 3-Phase Cold Shrink Terminations; High Dielectric-Constant Material Regulates Electric Field Stress; Non-Tracking Molded Silicone Rubber Insulation; Provides Void-Free Seal to Tape Shield, Wire Shield and UniShield® Power Cables
• Category: Splicing & Terminating Kits
• Full Technical Description: 3M 7622-T-110 Cold Shrink QT-III Non-Skirted Indoor Termination Kit; Designed for 5 to 15 kV Solid Dielectric Shielded Power Cable; Fits 0.64 to 1.08 Inch Cable Insulation O.D.; Includes 3 Non-Skirted, 1-Piece, 3-Phase Terminations; Compatible with Tape Shield, Wire Shield and UniShield® Cable Constructions; Silicone Rubber Insulation Provides Durable, Void-Free Sealing; High Dielectric-Constant Material Helps Regulate Electric Field Stress; 110 kV BIL Rating; Meets IEEE Standards for Indoor and Weather-Protected Applications
• Manufacturer Brand: 3M
• Sub Category: Insulated Indoor Termination Kit
• SKU Name: 3m 7622-t-110 qt iii indoor termination kit
