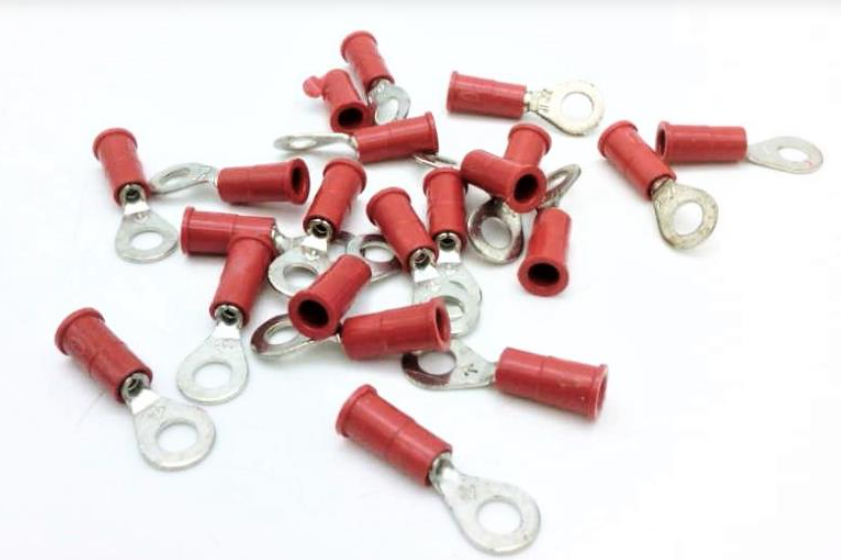

3M RV18-8L Highland™ Vinyl Insulated Ring Terminal, 18-22 AWG, #8 Stud

Overview

3M RV18-8L Highland™ Vinyl Insulated Ring Terminal, 18-22 AWG, #8 Stud

Product Specifications

• Manufacturer: 3M
• Manufacturer Product Number: RV18-8L
• Base Product Number: RV18
• Series: Highland™
• Description: CONN RING CIRC 18-22AWG #8 CRIMP
• Detailed Description: Ring Terminal Connector, #8 Stud, Circular, 18-22 AWG, Crimp
• Category: Connectors, Interconnects
• Sub Category: Ring Connectors
• Product Type: Ring Terminal Connector
• Terminal Type: Circular
• Stud Size: #8 Stud
• Wire Gauge: 18-22 AWG
• Termination: Crimp
• Insulation: Insulated
• Insulation Material: Vinyl
• Insulation Diameter: 0.145 in / 3.68 mm
• Color: Red
• Contact Material: ETP Copper
• Contact Finish: Tin
• Barrel Style: Butted Seam
• Thickness: 0.030 in / 0.76 mm
• Width Outer Edges: 0.310 in / 7.87 mm
• Overall Length: 0.930 in / 23.62 mm
• Packaging: Bulk
• Part Status: Obsolete
• Application: Ring Terminal Connections, Crimp Wire Termination, Control Panel Wiring, Electrical Repairs and Industrial Wire Connections
• Full Technical Description: 3M RV18-8L Highland Vinyl Insulated Ring Terminal; Designed for 18-22 AWG Wire and #8 Stud Connections; Features Red Vinyl Insulation, Circular Ring Terminal Design, Crimp Termination, Butted Seam Barrel, ETP Copper Contact Material and Tin-Plated Finish; Built for reliable electrical wire termination and panel wiring applications
• Manufacturer Brand: 3M Highland™
• SKU Name: 3m rv18-8l highland vinyl ring terminal
