Overview

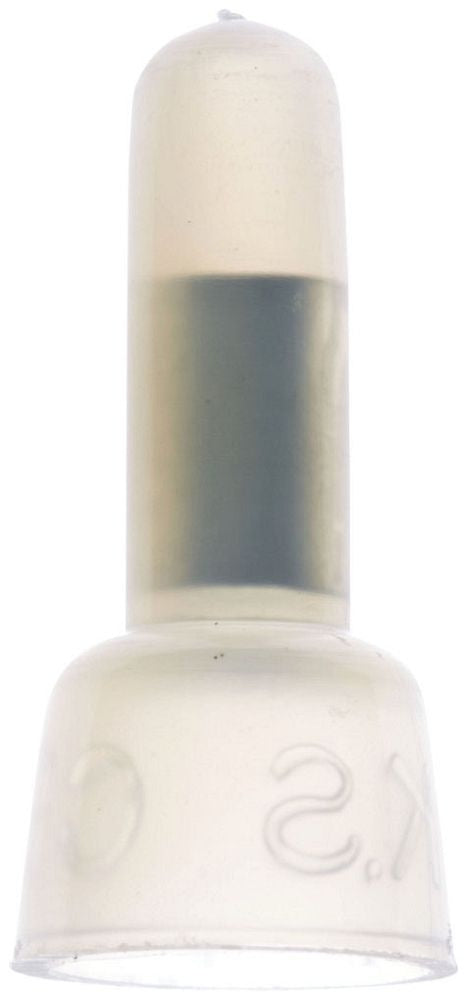

3M S-11-A Scotchlok Nylon Insulated Closed-End Connector, 22-16 AWG

Product Specifications

• UPC: 05112858997
• UPC 12 Digit: 051128589977
• Brand: Scotchlok™
• Manufacturer: 3M Co.
• Manufacturer Brand: 3M MRO Solutions
• Catalog Number: S-11-A
• Model: S-11-A
• Product Description: 3M S-11-A Scotchlok Nylon Insulated Butted Seam Standard Closed-End Connector, 22-16 AWG
• Type: Insulated
• Product Type: Closed-End Crimp Connector
• Wire Type: Solid; Stranded
• Wire Size: 22 to 16 AWG
• Minimum Wire Combination Size: 2 #16
• Maximum Wire Combination Size: 2 #22
• Material: Copper
• Insulation Material: Nylon
• Voltage Rating: 600 V
• Temperature Rating: 105°C
• Length: 0.83 in
• Approval: UL; CSA
• Standard Package: 100 per Box
• Category: Large Terminals & Connectors
• Sub Category: Crimp On Wire Connector
• UNSPSC: 31200000
• Unique Product Key: 5767106
• Commodity Code Enhanced: 64120
• Application: Closed-End Wire Splicing, Copper Conductor Splicing, Crimp Wire Connections, Building Wire, Signs, Fixtures and Luminaires
• Catalog Description: 3M Scotchlok color-coded closed-end connector is an electrical crimp sleeve connector with a copper insert for fast splicing of copper conductors. It is rated 600V for building wire and 1000V for signs, fixtures or luminaires.
• Full Technical Description: 3M S-11-A Scotchlok Nylon Insulated Closed-End Connector; Designed for 22 to 16 AWG Solid or Stranded Wire; Features Copper Insert, Nylon Insulation and 0.83 Inch Length; Supports Wire Combinations from 2 #16 to 2 #22; Rated 600 V with 105°C Temperature Rating; UL and CSA Approved; 100 Per Box
• SKU Name: 3m s-11-a scotchlok closed end connector
