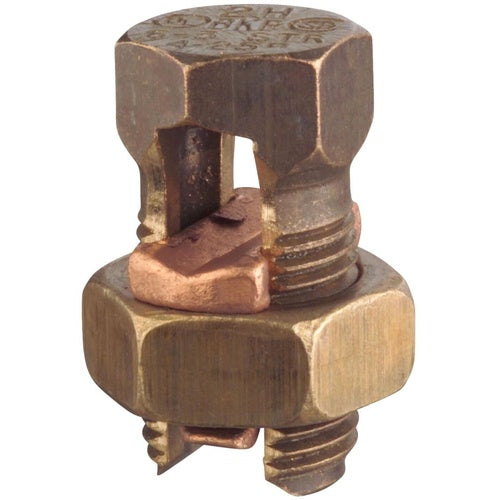

Blackburn 500M Copper Split Bolt Connector, 500 kcmil - 400 kcmil

Overview

Blackburn 500M Copper Split Bolt Connector, 500 kcmil - 400 kcmil

Product Specifications

• UPC: 78378685526
• UPC 12 Digit: 783786855261
• GTIN: 05414363142522
• Brand: ABB
• Sub Brand: Blackburn®
• Manufacturer: Thomas & Betts Co
• Catalog Number: 500M
• Echo Electric Part Number: 208084
• Product Type: Copper Split Bolt Connector
• Connector Type: Type H High Strength Split-Bolt Connector
• Type: High Strength
• Material: Bronze
• Mounting Type: Hexagon Screw
• Conductor Range Equal Main and Tap: 500 kcmil to 400 kcmil
• Conductor Range Min Tap with One Max Main: 2/0 Str
• Color: Metallic
• Finish: Metallic
• Standard: UL E9809
• Application: Splicing, Tapping or Terminating Conductors in Power and Grounding Electrical Connections
• Category: Mechanical Connectors
• Catalog Description: Blackburn 500M Type H high-strength split-bolt connector is designed for splicing, tapping or terminating power and grounding conductors with a 500 kcmil to 400 kcmil equal main and tap range.
• Full Technical Description: Blackburn 500M Copper Split Bolt Connector; Type H High Strength Split-Bolt Connector for 500 kcmil to 400 kcmil Equal Main and Tap Conductors; Supports Minimum Tap with One Maximum Main of 2/0 Str; Bronze Construction with Metallic Finish; Hexagon Screw Mounting; Designed for Power and Grounding Electrical Connections; UL E9809 Listed
• Manufacturer Brand: ABB Blackburn®
• Sub Category: Split Bolt Connectors
• SKU Name: blackburn 500m copper split bolt connector

Resources

• Manufacturer Spec Sheet
