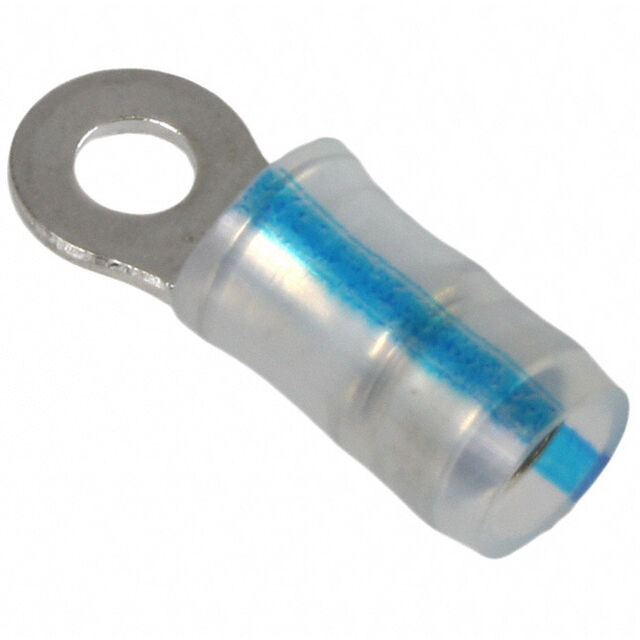

TE Connectivity AMP 53414-1 PIDG Insulated Ring Terminal, 14-16 AWG, #4 Stud

Overview

TE Connectivity AMP 53414-1 PIDG Insulated Ring Terminal, 14-16 AWG, #4 Stud

Product Specifications

• Manufacturer: TE Connectivity AMP Connectors
• Manufacturer Product Number: 53414-1
• Base Product Number: 53414
• Series: PIDG
• Category: Connectors, Interconnects
• Sub Category: Ring Connectors
• Product Type: Ring Terminal
• Terminal Type: Circular
• Stud Size: #4 Stud
• Wire Gauge: 14-16 AWG
• Termination: Crimp
• Mounting Type: Free Hanging, In-Line
• Insulation: Insulated
• Insulation Material: Polyvinylidene Fluoride, PVDF
• Insulation Diameter: 0.105 to 0.150 in / 2.67 to 3.81 mm
• Color: Natural with Blue Stripe
• Contact Material: Copper
• Contact Finish: Tin-Lead
• Thickness: 0.031 in / 0.79 mm
• Width Outer Edges: 0.250 in / 6.35 mm
• Overall Length: 0.703 in / 17.86 mm
• Features: Radiation Resistant; Serrated Termination
• Packaging: Bulk
• Part Status: Active
• Application: Ring Terminal Connections, Crimp Wire Termination, Electrical Panel Wiring, Aerospace Wiring, Industrial Wiring and Radiation-Resistant Wire Applications
• Full Technical Description: TE Connectivity AMP 53414-1 PIDG Insulated Ring Terminal; Designed for 14-16 AWG Wire and #4 Stud Connections; Features Circular Ring Terminal Design, Serrated Crimp Termination, PVDF Insulation, Copper Contact Material and Tin-Lead Finish; Natural Body with Blue Stripe and Radiation-Resistant Construction for Reliable Electrical Termination in Demanding Wiring Applications
