AMP 53418-1 PIDG 14-16 AWG #10 Ring Terminal

Overview

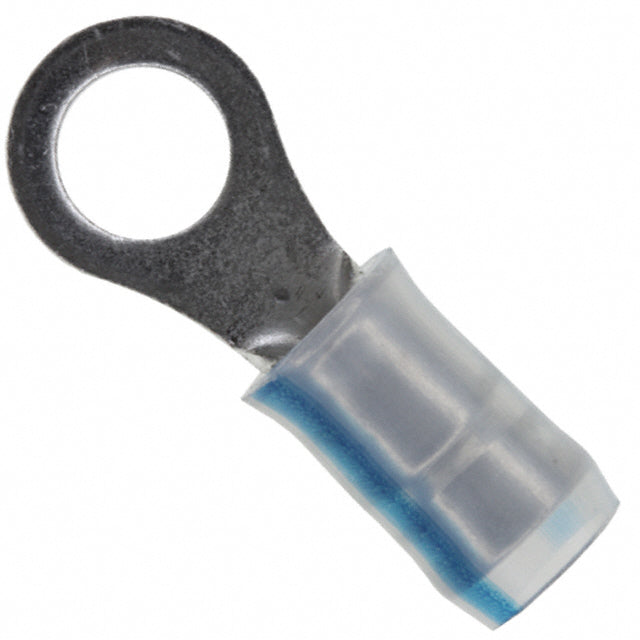

AMP 53418-1 PIDG 14-16 AWG #10 Partially Insulated Ring Terminal

Product Specifications

• Catalog Description: CLOSED RING TONGUE TERMINAL, 14-16 AWG, #10 STUD, PIDG, PARTIALLY INSULATED
• Category: Compression Connectors and Terminals
• Full Technical Description: PIDG Closed Ring Tongue Terminal; Designed for 14 to 16 AWG Copper Wire; #10 Stud Size; 5 mm Stud Diameter; One-Hole Ring Tongue Design; Closed Barrel Type; Straight Terminal Orientation; Partially Insulated Construction; Natural Insulation Sleeve with Blue Stripe; PVDF/PVF2 Insulation Material; Copper Contact Material; Tin-Lead Plating; Crimp Termination; Radiation Resistant and Serrated Termination Features; Compatible Insulation Diameter Range 0.105 to 0.150 Inch; Product Length 0.844 Inch; Outer Width 0.312 Inch; Tongue Thickness 0.031 Inch; Operating Temperature Range 0 to 150 Deg C; Compatible with Copper Wire
• Made In Usa:
• Manufacturer: TE Connectivity / AMP
• Manufacturer Brand: AMP
• Sub Category: Ring Terminal
• Unspsc:
• UPC 12 Digit:
• SKU Name: 53418-1
