AMP 534281 PIDG 12-10 AWG 3/8" Ring Terminal

Overview

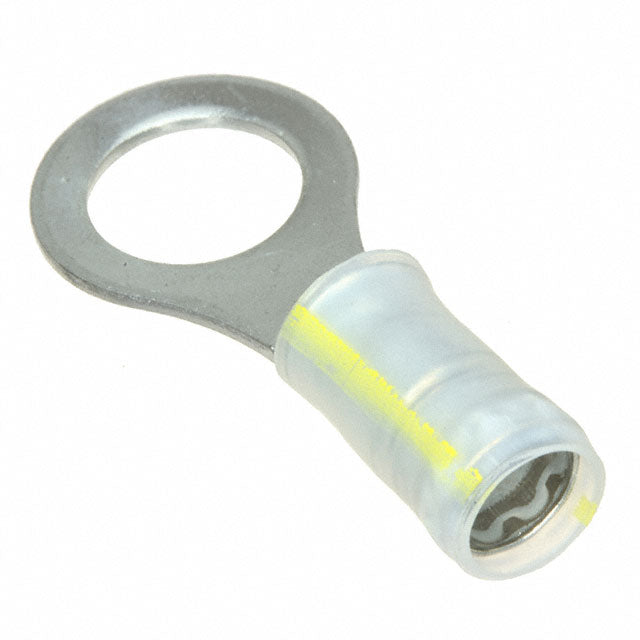

AMP 534281 PIDG 12-10 AWG 3/8" Partially Insulated Ring Terminal

Product Specifications

• Catalog Description: CLOSED RING TONGUE TERMINAL, 12-10 AWG, 3/8 INCH STUD, PIDG, PARTIALLY INSULATED
• Category: Compression Connectors and Terminals
• Full Technical Description: PIDG Closed Ring Tongue Terminal; Designed for 12 to 10 AWG Copper Wire; 3/8 Inch Stud Size; 9.91 mm Stud Diameter; One-Hole Ring Tongue Design; Closed Barrel Type; Straight Terminal Orientation; Partially Insulated Construction; Natural Insulation Sleeve with Yellow Stripe; PVDF/PVF2 Insulation Material; Copper Contact Material; Tin-Lead Plating; Crimp Termination; Radiation Resistant and Serrated Termination Features; Compatible Insulation Diameter Range 0.150 to 0.230 Inch; Product Length 1.419 Inch; Outer Width 0.593 Inch; Tongue Thickness 0.041 Inch; Operating Temperature Range 0 to 150 Deg C; Government Qualified Terminal; Compatible with Copper Wire
• Made In Usa:
• Manufacturer: TE Connectivity / AMP
• Manufacturer Brand: AMP
• Sub Category: Ring Terminal
• Unspsc:
• UPC 12 Digit:
• SKU Name: 53428-1
