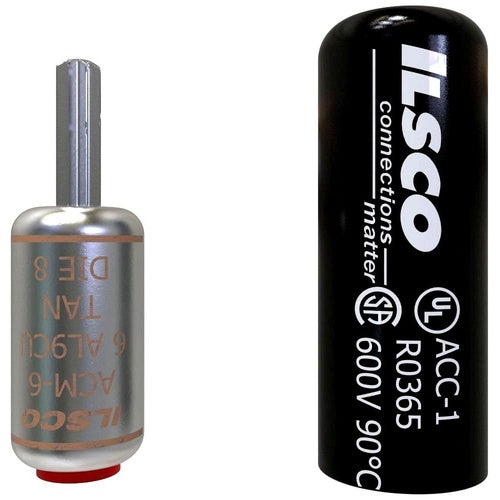

ILSCO ACM-6 Aluminum Compression Pigtail Adaptor, Conductor Size 6, Tin-Plated

Overview

Ilsco ACM-6 Aluminum Compression Pigtail Adaptor, Conductor Size 6, Tin-Plated

Product Specifications

• Brand: Ilsco
• Manufacturer: Ilsco
• Manufacturer Part Number: ACM-6
• SKU: ACM-6
• Product Type: Aluminum Compression Pigtail Adaptor
• Connection Type: Compression
• Conductor Size: 6 AWG
• Conductor Material: Copper; Aluminum
• Material: Aluminum
• Connector Finish: Tin
• Finish: Tin Plated
• Insulation: Supplied with Insulating Cover
• Barrel Length: 1.17 in / 29.718 mm
• Cover Length: 2.094 in / 53.1876 mm
• Inside Diameter: 0.194 in / 4.9276 mm
• Outside Diameter: 0.6 in / 15.24 mm
• Pin Diameter: 0.203 in / 5.1562 mm
• Pin Length: 0.68 in / 17.272 mm
• Length: 2.694 in / 68.4276 mm
• Width: 0.78 in / 19.812 mm
• Height: 0.78 in / 19.812 mm
• Mounting Hole Spacing: 0 mm
• Weight: 0.08 lb
• Box Height: 2 in
• Box Width: 6.1875 in
• Box Weight: 2.1645 lb
• Approval: UL; CSA
• Application: Aluminum Pigtail Adaptor, Copper/Aluminum Conductor Connections, Compression Splicing, Electrical Pigtailing and Power Distribution Wiring
• Category: Equipment
• Catalog Description: Ilsco ACM-6 aluminum compression pigtail adaptor is designed for 6 AWG copper or aluminum conductor connections. It features aluminum construction, tin finish and an insulating cover for dependable electrical pigtailing.
• Full Technical Description: Ilsco ACM-6 Aluminum Compression Pigtail Adaptor; Designed for 6 AWG Copper and Aluminum Conductors; Aluminum Body with Tin-Plated Finish; Supplied with Insulating Cover; 1.17 Inch Barrel Length, 0.194 Inch Inside Diameter, 0.203 Inch Pin Diameter and 2.694 Inch Overall Length; UL and CSA Approved for Reliable Compression Pigtail Applications
• Manufacturer Brand: Ilsco
• Sub Category: Compression Pigtail Adaptors
• SKU Name: ilsco acm-6 aluminum compression pigtail adaptor

Resources

• Manufacturer Spec Sheet
