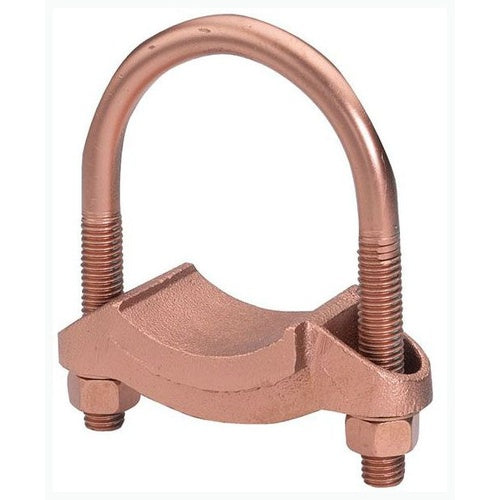

Burndy GG17-1 1-1/2" Ground Connector

Overview

Burndy GG17-1 1-1/2" Ground Connector

Product Specifications

• UPC: 78181099004
• Used On: Copper Bar/Strap/Braid/Cable to Rod/Tube, Direct Burial
• Additional Information: RoHS Compatible; Stud/Bolt Size 3/8 Inch; Installation Torque 240 Lb-Inch
• Catalog Number: GG171
• Model: GG
• Ips Size: 1-1/2 Inch
• Rod Size: 1-5/8 to 1-7/8 Inch
• Size: 3-1/4 Inch W x 3-1/2 Inch H
• Installation: U-Bolt to Rod/Tube
• Material: Cast High Copper Alloy Body, U-Bolt, Nut, LockWasher
• Approval: UL 467, CSA
• Catalog Description: MECHANICAL GROUNDING CONNECTOR, COPPER BAR, STRAP, BRAID OR CABLE TO ROD OR TUBE, 1-1/2" PIPE, 1-5/8" - 1-7/8" ROD.
• Category: Large Terminals & Connectors
• Full Technical Description: Cast High Copper Alloy Body, U-Bolt, Nut, Lockwasher Material; 3-1/4 Inch W X 3-1/2 Inch H Size; Copper Bar/Strap/Braid/Cable to Rod/Tube, Direct Burial Used on; U-Bolt to Rod/Tube Installation; UL 467, CSA Approval; 1-5/8 to 1-7/8 Inch Rod Size; 1-1/2 Inch IPS Size; RoHS Compatible; Stud/Bolt Size 3/8 Inch; Installation Torque 240 lb-Inch; GG Model
• Made In Usa: Yes
• Manufacturer: Burndy Products
• Manufacturer Brand: Burndy Products
• Proposition 65 Warning (Ca): Warning: This product can expose you to chemicals including lead and lead compounds, which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.
• Sub Category: Conduit To Rod Clamp
• Unspsc: 39121408
• UPC 12 Digit: 781810990049
• SKU Name: bur gg171
