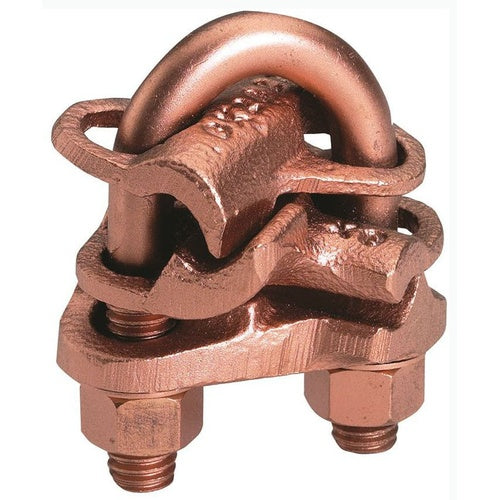

Burndy GX2626 2/0-250 Copper Ground Connector

Overview

Burndy GX2626 2/0-250 Copper Ground Connector

Product Specifications

• Catalog Description: MECHANICAL GROUNDING CONNECTOR, CABLE CROSS CONNECTION,4 AWG (SOL.) - 2/0 AWG (STR.) ( RUN), 4 AWG (SOL.) - 2/0 AWG (STR.) ( TAP), 3/8" STUD.
• Category: Large Terminals & Connectors
• Full Technical Description: Cast High Copper Alloy Body, Durium U-Bolt, Nut, Lockwasher Material; 1-3/4 Inch L X 1-2/3 Inch W X 2-1/2 Inch H Size; Copper Cable to Rod, Direct Burial Used on; U-Bolt to Rod Installation; UL 467 Approval; 4 to 3/0 AWG Solid, 5 to 2/0 AWG Stranded (Copper, Run), 4 to 3/0 AWG Solid, 4 to 2/0 AWG Stranded (Copper, Tap) Conductor Size; 3/8 Inch Rod Size; RoHS Compatible; Stud/Bolt Size 3/8 Inch; Installation Torque 240 lb-Inch; GX Model
• Manufacturer: Burndy Products
• Manufacturer Brand: Burndy Products
• Proposition 65 Warning (Ca): Warning: This product can expose you to chemicals including lead and lead compounds, which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.
• Sub Category: Conduit To Rod Clamp
• Unspsc: 39121408
• UPC 12 Digit: 781810991695
• SKU Name: bur gx2626
