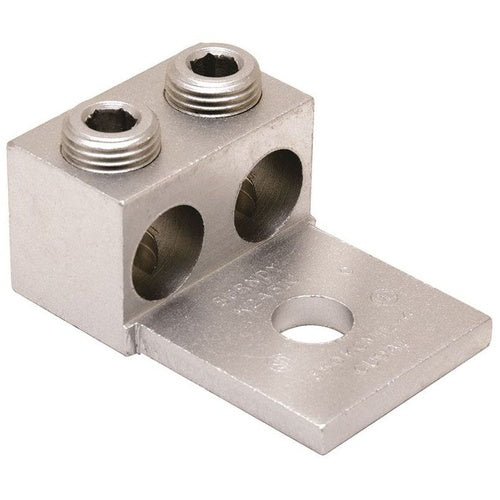

Burndy K2A44U 1000 Aluminum/Copper 2-Hole Terminal Lug

Name: Burndy K2A44U 1000 Aluminum/Copper 2-Hole Terminal Lug
Brand: Industrial Fittings Now
Price: 51.12 USD

Quantity

Industrial Fittings Now

Product Description

Catalog Description: ALUMINUM UNIVERSAL TERMINAL, 2 CONDUCTOR, 1 HOLE, 500-1000 KCMIL, 5/8" STUD, 2 SCREWS, AL/CU RATED, TIN PLATED.
Full Technical Description: Electro-Tin Plated Aluminum Alloy Material; 3.5 Inch Overall Length; 500 kcmil Stranded min. Conductor Size; 1000 kcmil Stranded Max. Conductor Size; Aluminum/Copper Conductor Material; UL 468-A, UL 468-B, CSA Approval; 2 Conductor(S); 5/8 Inch Stud Size; 1.66 Inch L X 3.52 Inch W X 0.5 Inch Thk Pad Size; 1 Pad Hole(S); Installation Torque 500 lb-Inch; K2A-U Model
Manufacturer: BURNDY PRODUCTS
Sub Category: Mechanical Cable Lug
UPC 12 Digit: 781810600306
SKU Name: bur k2a44u
