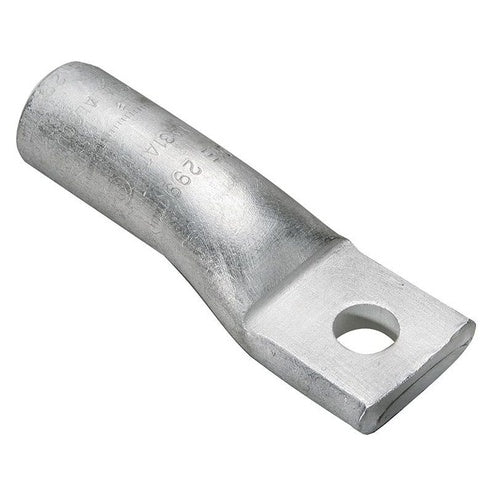

Burndy YA34A1 500Mcm Aluminum/Copper 1-Hole Lug

Overview

Burndy YA34A1 500Mcm Aluminum/Copper 1-Hole Lug

Product Specifications

• UPC: 78181075605
• Pad Size: 1.91 Inch Length x 1.8 Inch Width x 0.46 Inch Thickness
• Number Of Pad Holes: 1
• Stud Size: 5/8 Inch
• Color: Pink
• Die Index: 300
• Material: Electro Tin Plated Aluminum
• Overall Length: 5.56 Inch
• Approval: UL, CSA
• Additional Information: RoHS Compliant; Cable Entry Type Chamfered; Wire Strip Length 2-5/8 Inch; Temperature Rating 90 Deg C; Includes Color Coded End Cap; Less Inspection Window
• Catalog Number: YA34A1
• Brand Name: HYLUG[TM]
• Model: YA-A
• Voltage Rating: 35 Kilovolt
• Conductor Material: Copper/Aluminum
• Conductor Size: 500 KCMIL (Aluminum), 500 KCMIL Stranded (Copper), 350 KCMIL (CCA DLO)
• Barrel Type: Closed, Straight, Non-Insulated
• Barrel Length: 2.34 Inch
• Catalog Description: 500 KCMIL, AL TERMINAL, ONE HOLE, 5/8", STUD SIZE, AL9CU, INTERNAL CHAMFER, TIN PLATED, PREFILLED PENETROX, END CAP, UL/CSA, 90C, UP TO 35KV, PINK COLOR CODE, 300 DIE INDEX.
• Category: Large Terminals & Connectors
• Full Technical Description: Electro Tin Plated Aluminum Material; Pink Color; 5.56 Inch Overall Length; 2.34 Inch Barrel Length; Copper/Aluminum Conductor Material; UL, CSA Approval; 35 Kilovolt Voltage Rating; 500 kcmil (Aluminum), 500 kcmil Stranded (Copper), 350 kcmil (Cca Dlo) Conductor Size; 5/8 Inch Stud Size; 300 Die Index; 1.91 Inch Length X 1.8 Inch Width X 0.46 Inch Thickness Pad Size; 1 Pad Hole(S); Closed, Straight, Non-Insulated Barrel Type; HYLUG[TM] Brand; RoHS Compliant; Cable Entry Type Chamfered; Wire Strip Length 2-5/8 Inch; Temperature Rating 90 Deg C; Includes Color Coded End Cap; Less Inspection Window; YA-A Model
• Made In Usa: Yes
• Manufacturer: Burndy Products
• Manufacturer Brand: Burndy Products
• Proposition 65 Warning (Ca): Warning: This product can expose you to chemicals including lead and lead compounds, which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.
• Sub Category: Compression Cable Lug
• Unspsc: 39121405
• UPC 12 Digit: 781810756058
• SKU Name: bur ya34a1
