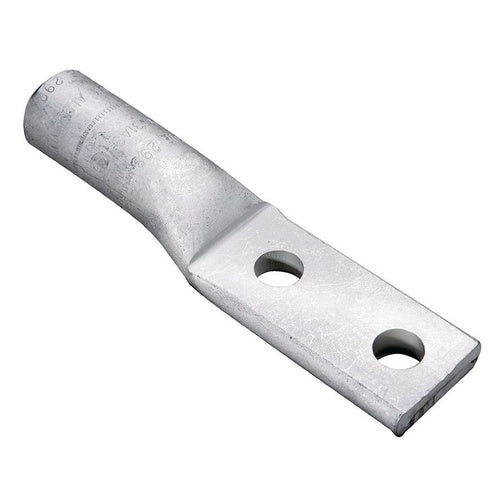

Burndy YA36A3 600Mcm Aluminum/Copper 2-Hole Lug

Overview

Burndy YA36A3 600Mcm Aluminum/Copper 2-Hole Lug

Product Specifications

• UPC: 78181076125
• Pad Size: 3.15 Inch Length x 1.62 Inch Width x 0.52 Inch Thickness
• Number Of Pad Holes: 2
• Pad Hole Spacing: 1-3/4 Inch
• Stud Size: 1/2 Inch
• Color: Black
• Die Index: 473
• Material: Electro Tin Plated Aluminum
• Overall Length: 7.09 Inch
• Approval: UL, CSA
• Additional Information: RoHS Compliant; Cable Entry Type Chamfered, Beveled Entry; Wire Strip Length 2-7/8 Inch; Temperature Rating 90 Deg C; Includes Color Coded End Cap; Less Inspection Window
• Catalog Number: YA36A3
• Brand Name: HYLUG[TM]
• Model: YA-A
• Voltage Rating: 600 Volt to 35 Kilovolt
• Conductor Material: Copper/Aluminum
• Conductor Size: 500 KCMIL (CCA DLO), 600 KCMIL (Aluminum), 600 KCMIL Stranded (Copper)
• Barrel Type: Closed, Straight, Non-Insulated
• Barrel Length: 2.47 Inch
• Catalog Description: 600 KCMIL, AL TERMINAL, TWO HOLE, 1/2" STUD SIZE, 1-3/4" HOLE SPACING, AL9CU, INTERNAL CHAMFER, TIN PLATED, PREFILLED PENETROX, END CAP, UL/CSA, 90C, UP TO 35KV, BLACK COLOR CODE, 473 DIE INDEX
• Category: Large Terminals & Connectors
• Full Technical Description: Electro Tin Plated Aluminum Material; Black Color; 7.09 Inch Overall Length; 2.47 Inch Barrel Length; Copper/Aluminum Conductor Material; UL, CSA Approval; 600 Volt to 35 Kilovolt Voltage Rating; 500 kcmil (Cca Dlo), 600 kcmil (Aluminum), 600 kcmil Stranded (Copper) Conductor Size; 1/2 Inch Stud Size; 473 Die Index; 3.15 Inch Length X 1.62 Inch Width X 0.52 Inch Thickness Pad Size; 2 Pad Hole(S); 1-3/4 Inch Pad Hole Spacing; Closed, Straight, Non-Insulated Barrel Type; Hylug Brand; RoHS Compliant; Cable Entry Type Chamfered, Beveled Entry; Wire Strip Length 2-7/8 Inch; Temperature Rating 90 Deg C; Includes Color Coded End Cap; Less Inspection Window; YA-A Model
• Made In Usa: Yes
• Manufacturer: Burndy Products
• Manufacturer Brand: Burndy Products
• Proposition 65 Warning (Ca): Warning: This product can expose you to chemicals including lead and lead compounds, which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.
• Sub Category: Compression Cable Lug
• Unspsc: 39121405
• UPC 12 Digit: 781810761250
• SKU Name: bur ya36a3
