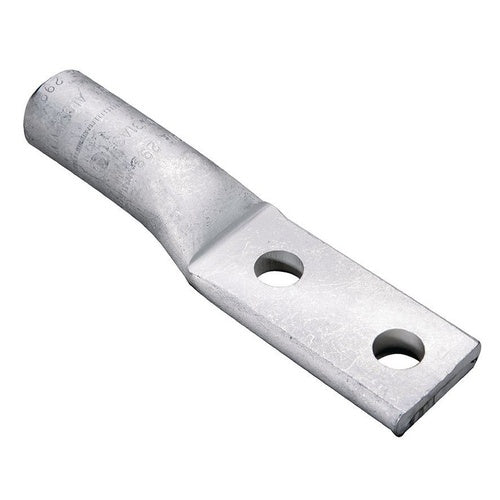

Burndy YA39A5 750Mcm Aluminum/Copper 2-Hole Lug

Overview

Burndy YA39A5 750Mcm Aluminum/Copper 2-Hole Lug

Product Specifications

• UPC: 78181076202
• Pad Size: 1.62 Inch W x 0.43 Inch Thk
• Number Of Pad Holes: 2
• Pad Hole Spacing: 1.75 Inch
• Stud Size: 1/2 Inch
• Color: Yellow
• Die Index: 936
• Material: Electro-Tin Plated Aluminum
• Overall Length: 7.07 Inch
• Approval: UL 468A/B, CSA
• Additional Information: RoHS Compliant; Wire Strip Length 2-7/8 Inch; Cable Entry Type Beveled Entry; Includes Inspection Window; Temperature Rating 90 Deg C
• Catalog Number: YA39A5
• Brand Name: HYLUG[TM]
• Model: Type YA-A
• Voltage Rating: 600 V to 35 KV
• Conductor Material: Aluminum/Copper
• Conductor Size: 700 to 750 KCMIL Aluminum (Code), 700 to 750 KCMIL Stranded Copper (Code), 900 KCMIL Compact Aluminum (Code)
• Barrel Type: Standard, Straight
• Barrel Length: 2.46 Inch
• Catalog Description: 750 KCMIL, AL TERMINAL, TWO HOLE, 1/2" STUD SIZE, 1-3/4" HOLE SPACING, AL9CU, INTERNAL CHAMFER, TIN PLATED, PREFILLED PENETROX, END CAP, UL/CSA, 90C, UP TO 35KV, YELLOW COLOR CODE, 936 DIE INDEX.
• Category: Large Terminals & Connectors
• Full Technical Description: Electro-Tin Plated Aluminum Material; Yellow Color; 7.07 Inch Overall Length; 2.46 Inch Barrel Length; Aluminum/Copper Conductor Material; UL 468A/B, CSA Approval; 600 V to 35 kV Voltage Rating; 700 to 750 kcmil Aluminum (Code), 700 to 750 kcmil Stranded Copper (Code), 900 kcmil Compact Aluminum (Code) Conductor Size; 1/2 Inch Stud Size; 936 Die Index; 1.62 Inch W X 0.43 Inch Thk Pad Size; 2 Pad Hole(S); 1.75 Inch Pad Hole Spacing; Standard, Straight Barrel Type; Hylug Brand; RoHS Compliant; Wire Strip Length 2-7/8 Inch; Cable Entry Type Beveled Entry; Includes Inspection Window; Temperature Rating 90 Deg C; TYPE YA-A Model
• Made In Usa: Yes
• Manufacturer: BURNDY PRODUCTS
• Manufacturer Brand: Burndy Products
• Proposition 65 Warning (Ca): Warning: This product can expose you to chemicals including lead and lead compounds, which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.
• Sub Category: Compression Cable Lug
• Unspsc: 39121405
• UPC 12 Digit: 781810762028
• SKU Name: bur ya39a5
