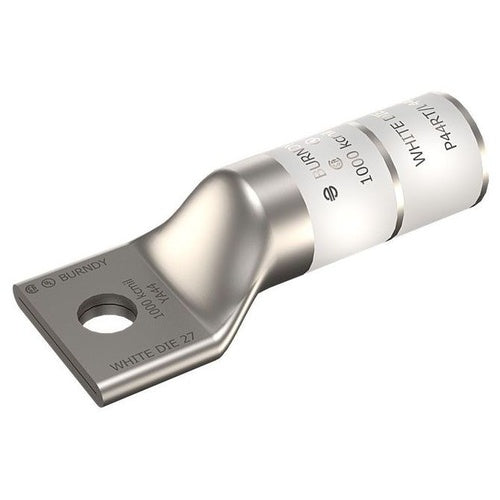

Burndy YA44 1000Mcm Copper 1-Hole Lug

Overview

Burndy YA44 1000Mcm Copper 1-Hole Lug

Product Specifications

• Catalog Description: 1000 KCMIL CU, ONE HOLE, 5/8 STUD SIZE, LONG BARREL, INTERNAL CHAMFER, TIN PLATED, UL/CSA, 90C, UP TO 35KV,WHITE COLOR CODE, 27 DIE INDEX.
• Category: Large Terminals & Connectors
• Full Technical Description: Electro-Tin Plated Copper Material; White Color; 5.45 Inch Overall Length; 3 Inch Barrel Length; Copper Conductor Material; UL 468A/468B, CSA Approval; 600 V to 35 kV Voltage Rating; 1000 kcmil Stranded (Code) Conductor Size; 5/8 Inch Stud Size; 27 Die Index; 2.19 Inch W X 0.33 Inch Thk Pad Size; 1 Pad Hole(S); Long, Standard, Straight Barrel Type; HYLUG[TM] Brand; RoHS Compatible; Temperature Rating 90 Deg C; Wire Strip Length 3-1/16 Inch; Cable Entry Type Beveled Entry, Chamfered; YA Model
• Made In Usa: Yes
• Manufacturer: BURNDY PRODUCTS
• Sub Category: Compression Cable Lug
• Unspsc: 39121405
• UPC 12 Digit: 781810522950
• SKU Name: bur ya44
