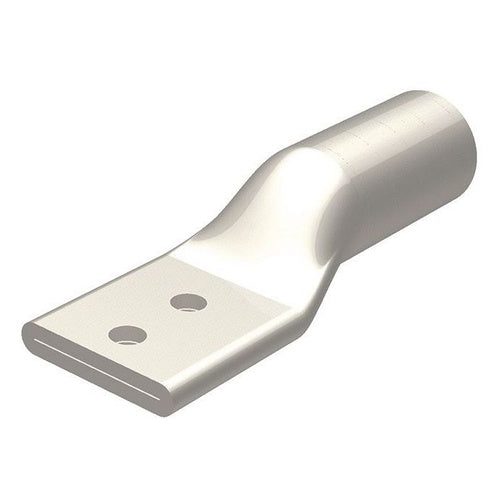

Burndy YA45A5 1250KCMIL 2-Hole Lug

Overview

Burndy YA45A5 1250KCMIL 2-Hole Lug

Product Specifications

• UPC: 78181009942
• Number Of Pad Holes: 2
• Pad Hole Spacing: 1.75 INCH
• Stud Size: 1/2 INCH
• Color: BROWN
• Die Index: 302
• Material: ELECTRO TIN PLATED ALUMINUM
• Overall Length: 7.73 INCH
• Approval: UL 486-A, UL 486-B, CSA
• Additional Information: ROHS COMPATIBLE; WIRE STRIP LENGTH 3 INCH; TEMPERATURE RATING 75 DEG C
• Catalog Number: YA45A5
• Brand Name: HYLUG[T], BURNDY[R]
• Model: YA-A
• Voltage Rating: 600 V TO 35 KV
• Conductor Material: ALUMINUM/COPPER
• Conductor Size: 1250 KCMIL (ALUMINUM), 1250 KCMIL STRANDED (COPPER)
• Barrel Type: STANDARD, STRAIGHT
• Pad Size: 2.59 INCH W X 0.51 INCH THK
• Catalog Description: 1250 KCMIL, AL TERMINAL, TWO HOLE, 1/2" STUD SIZE, 1-3/4" HOLE SPACING, AL9CU, INTERNAL CHAMFER, TIN PLATED, PREFILLED PENETROX, END CAP, UL/CSA, 90C, UP TO 35KV, BROWN COLOR CODE, 302 DIE INDEX.
• Category: Large Terminals & Connectors
• Full Technical Description: Electro Tin Plated Aluminum Material; Brown Color; 7.73 Inch Overall Length; Aluminum/Copper Conductor Material; UL 486-A, UL 486-B, CSA Approval; 600 V to 35 kV Voltage Rating; 1250 kcmil (Aluminum), 1250 kcmil Stranded (Copper) Conductor Size; 1/2 Inch Stud Size; 302 Die Index; 2.59 Inch W X 0.51 Inch Thk Pad Size; 2 Pad Hole(S); 1.75 Inch Pad Hole Spacing; Standard, Straight Barrel Type; HYLUG[T], BURNDY[R] Brand; RoHS Compatible; Wire Strip Length 3 Inch; Temperature Rating 75 Deg C; YA-A Model
• Made In Usa: Yes
• Manufacturer: BURNDY PRODUCTS
• Manufacturer Brand: Burndy Products
• Proposition 65 Warning (Ca): Warning: This product can expose you to chemicals including lead and lead compounds, which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.
• Sub Category: Compression Cable Lug
• Unspsc: 39121405
• UPC 12 Digit: 781810099421
• SKU Name: bur ya45a5

Resources

• Technical Line Drawing
• Manufacturer Spec Sheet
