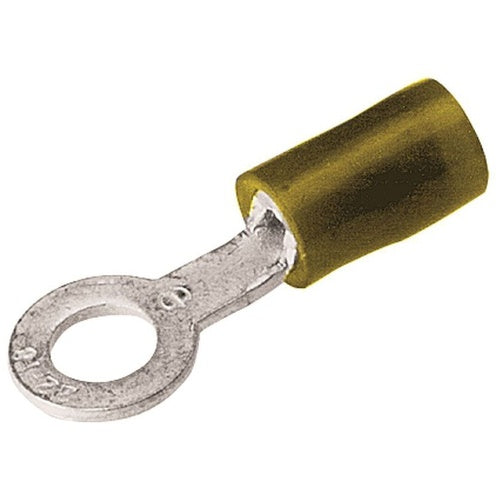

Burndy YAES10-N12 12-10Ins Ring Lug

Overview

Burndy YAES10-N12 12-10Ins Ring Lug

Product Specifications

• UPC: 78181080505
• Stud Size: #8 TO #10
• Temperature Rating: 105 DEG C
• Approval: UL, CSA
• Additional Information: ROHS COMPATIBLE; SIZE 1.12 INCH L X 0.37 INCH W; MATERIAL ELECTROLYTIC TIN PLATED COPPER; WIRE STRIP LENGTH 11/32 INCH; MAXIMUM INSULATION DIAMETER 0.21 INCH; PACKAGING TYPE BULK
• Catalog Number: YAES10N12
• Brand Name: INSULUG[T], BURNDY[R]
• Model: YAES
• Type: SMOOTH FUNNEL ENTRY, BRAZED SEAM BARREL, HEAVY DUTY
• Minimum Conductor Size: 12 AWG STRANDED/SOLID (COPPER)
• Maximum Conductor Size: 10 AWG SOLID/STRANDED (COPPER)
• Color: YELLOW
• Insulation Type: NYLON INSULATED
• Catalog Description: FORK TONGUE COPPER TERMINAL, 12-10, MAX. INSUL.DIA. ACCOM.: .209, COLOR CODE: YELLOW, 8-10, 1.12 IN L, .37 IN W, TIN PLATED, 600 VOLTS MAX.
• Category: Large Terminals & Connectors
• Full Technical Description: Smooth Funnel Entry, Brazed Seam Barrel, Heavy Duty Type; Yellow Color; 12 AWG Stranded/Solid (Copper) min. Conductor Size; 10 AWG Solid/Stranded (Copper) Max. Conductor Size; UL, CSA Approval; 105 Deg C Temperature Rating; #8 to #10 Stud Size; Nylon Insulated Insulation Type; INSULUG[T], BURNDY[R] Brand; RoHS Compatible; Size 1.12 Inch L X 0.37 Inch W; Material Electrolytic Tin Plated Copper; Wire Strip Length 11/32 Inch; Maximum Insulation Diameter 0.21 Inch; Packaging Type Bulk; YAES Model
• Made In Usa: Yes
• Manufacturer: Burndy Products
• Manufacturer Brand: Burndy Products
• Sub Category: Ring Lug
• Unspsc: 39121405
• UPC 12 Digit: 781810805053
• SKU Name: bur yaes10n12
