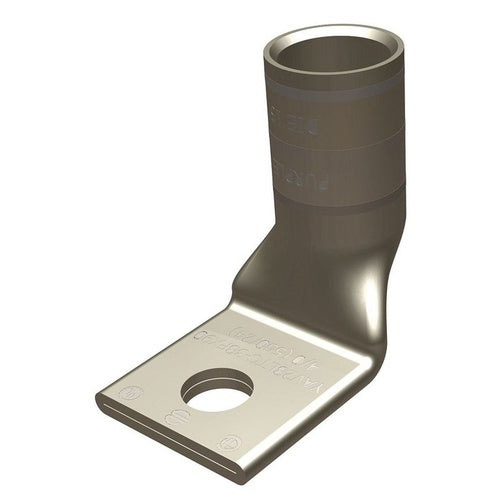

Burndy YAV25LTC38FX90 Terminal Lug

Overview

Burndy YAV25LTC38FX90 Terminal Lug

Product Specifications

• Brand Name: Burndy
• Special Features: Features: Compression Terminal, With Inspection Window, UL Listed 90 DEG C, 600 Volts to 35 kV, Tongue Angle: 90 DEG, Die Index: 12 or 348, Wire Strip Length: 11/16 IN
• Sub Brand: TERMINALS, HYLUG
• Temperature Rating: 194
• Type: Standard Barrel, Tin Plated
• Catalog Description: CU TUBING HYLUG, 1 HOLE WITH INSPECTION WINDOW, 1/0 WELD, 1/0(275/#24) DLO, 1/0 AWG CODE, 100 NAVY, 600V-35KV, 3/8" STUD, COMPRESSION, 0.40 IN BCD.
• Category: Large Terminals & Connectors
• Made In Usa: Yes
• Manufacturer: Burndy Products
• Manufacturer Brand: Burndy Products
• Proposition 65 Warning (Ca): Warning: This product can expose you to chemicals including lead and lead compounds, which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.
• Unspsc: 39121408
• UPC 12 Digit: 781810022740
• SKU Name: bur yav25ltc38fx90

Resources

• Technical Drawing
• Technical Line Drawing
• Manufacturer Spec Sheet
