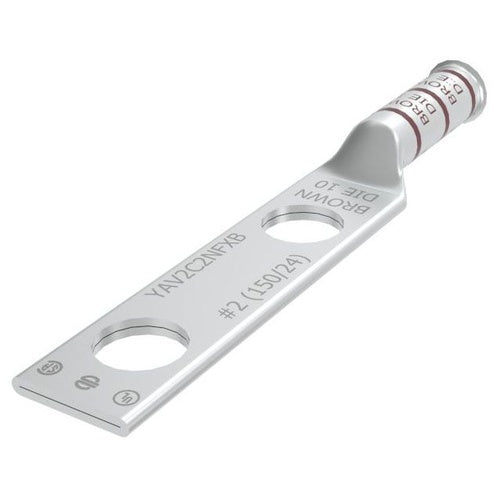

Burndy YAV2C2NFXB 2Awg 2-Hole Lug

Overview

Burndy YAV2C2NFXB 2Awg 2-Hole Lug

Product Specifications

• UPC: 78181032331
• Pad Size: 0.83 INCH W X 0.12 INCH THK
• Number Of Pad Holes: 2
• Pad Hole Spacing: 1 3/4 INCH
• Stud Size: 1/2 INCH
• Color: BROWN
• Die Index: 10
• Material: ELECTRO TIN PLATED COPPER
• Overall Length: 4.76 INCH
• Approval: UL, CSA
• Additional Information: ROHS COMPATIBLE; CABLE ENTRY TYPE BEVELED; WIRE STRIP LENGTH 1 7/16 INCH; TEMPERATURE RATING 90 DEG C
• Catalog Number: YAV2C2NFXB
• Brand Name: HYLUG[T], BURNDY[R]
• Model: YA-2N-FXB
• Voltage Rating: 600 V TO 35 KV
• Conductor Material: COPPER
• Conductor Size: 125/24 TO 150/24, 2 AWG (WELD FLEX), 2 AWG (CODE)
• Barrel Type: BELLED END, LONG, STANDARD, STRAIGHT
• Barrel Length: 1.35 INCH
• Catalog Description: 2 FLEX G,H,I,K,M,DLO, 2 AWG CU, TWO HOLE, 1/2 STUD SIZE, 1-3/4 HOLE SPACING, LONG BARREL, BELL END, TIN PLATED, UL/CSA, 90C, UP TO 35KV, BROWN COLOR CODE, 10 DIE INDEX.
• Category: Large Terminals & Connectors
• Full Technical Description: Electro Tin Plated Copper Material; Brown Color; 4.76 Inch Overall Length; 1.35 Inch Barrel Length; Copper Conductor Material; UL, CSA Approval; 600 V to 35 kV Voltage Rating; 125/24 to 150/24, 2 AWG (Weld Flex), 2 AWG (Code) Conductor Size; 1/2 Inch Stud Size; 10 Die Index; 0.83 Inch W X 0.12 Inch Thk Pad Size; 2 Pad Hole(S); 1 3/4 Inch Pad Hole Spacing; Belled End, Long, Standard, Straight Barrel Type; HYLUG[T], BURNDY[R] Brand; RoHS Compatible; Cable Entry Type Beveled; Wire Strip Length 1 7/16 Inch; Temperature Rating 90 Deg C; YA-2N-FXB Model
• Made In Usa: Yes
• Manufacturer: BURNDY PRODUCTS
• Manufacturer Brand: Burndy Products
• Proposition 65 Warning (Ca): Warning: This product can expose you to chemicals including lead and lead compounds, which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.
• Sub Category: Compression Cable Lug
• Unspsc: 39121405
• UPC 12 Digit: 781810323311
• SKU Name: bur yav2c2nfxb

Resources

• Technical Drawing
• Technical Line Drawing
• Manufacturer Spec Sheet
