Burndy YAV4C2NFXB 4Awg 2-Hole Lug

Overview

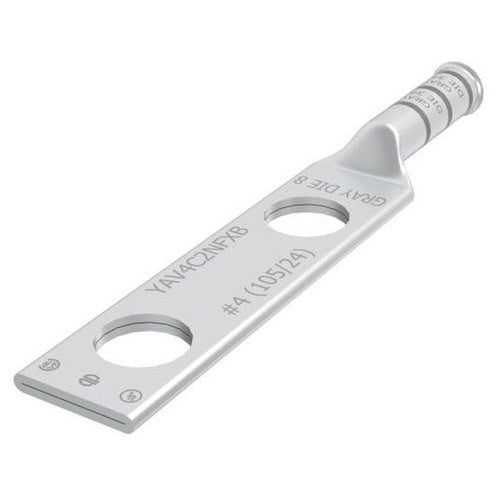

Burndy YAV4C2NFXB 4Awg 2-Hole Lug

Product Specifications

• Catalog Description: 4 FLEX G,H,I,K,M,DLO, 4 AWG CU, TWO HOLE, 1/2 STUD SIZE, 1-3/4 HOLE SPACING, LONG BARREL, BELL END, TIN PLATED, UL/CSA, 90C, UP TO 35KV, GRAY COLOR CODE, 8 OR 346 DIE INDEX.
• Category: Large Terminals & Connectors
• Full Technical Description: Electro Tin Plated Copper Material; Gray Color; 4.56 Inch Overall Length; 1.22 Inch Barrel Length; Copper Conductor Material; UL, CSA Approval; 600 V to 35 kV Voltage Rating; 91/24 to 105/24, 4 AWG (Weld Flex), 4 AWG (Code) Conductor Size; 1/2 Inch Stud Size; 8 Die Index; 0.83 Inch W X 0.12 Inch Thk Pad Size; 2 Pad Hole(S); 1 3/4 Inch Pad Hole Spacing; Belled End, Long, Standard, Straight Barrel Type; HYLUG[T], BURNDY[R] Brand; RoHS Compatible; Cable Entry Type Beveled; Wire Strip Length 1 5/16 Inch; Temperature Rating 90 Deg C; YA-2N-FXB Model
• Made In Usa: Yes
• Manufacturer: BURNDY PRODUCTS
• Sub Category: Compression Cable Lug
• Unspsc: 39121405
• UPC 12 Digit: 781810297858
• SKU Name: bur yav4c2nfxb
