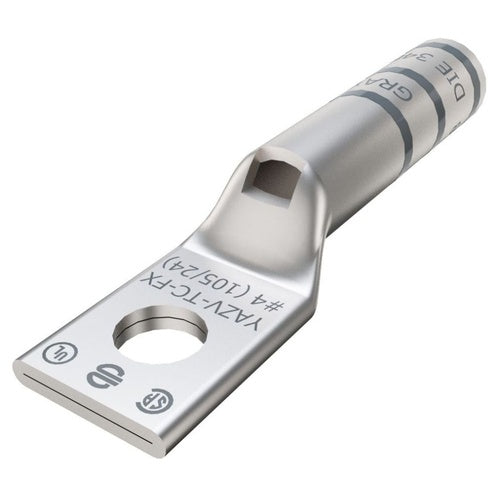

Burndy YAZV4CTC14FX 1-Hole Compressn Lug

Overview

Burndy YAZV4CTC14FX 1-Hole Compressn Lug

Product Specifications

• Catalog Description: 4 FLEX G,H,I,K,M,DLO, 4 AWG CU, ONE HOLE, 1/4 STUD SIZE, LONG BARREL, INTERNAL CHAMFER, TIN PLATED, UL/CSA, 90C, UP TO 35KV, GRAY COLOR CODE, 8 OR 346 DIE INDEX.
• Full Technical Description: Electro Tin Plated Copper Material; Gray Color; 2.19 Inch Overall Length; 1.25 Inch Barrel Length; Copper Conductor Material; UL, CSA Approval; 600 V to 35 kV Voltage Rating; 91/24 to 105/24, 4 AWG (Weld Flex) Conductor Size; 1/4 Inch Stud Size; 8/346 Die Index; 0.55 Inch W X 0.09 Inch Thk Pad Size; 1 Pad Hole(S); Long, Skived, Straight Barrel Type; HYLUG[T], BURNDY[R] Brand; RoHS Compatible; Cable Entry Type Beveled, Chamfered; Wire Strip Length 1 5/16 Inch; Temperature Rating 90 Deg C; With Inspection Window; YAZV Model
• Manufacturer: BURNDY PRODUCTS
• Sub Category: Compression Cable Lug
• UPC 12 Digit: 781810241196
• SKU Name: bur yazv4ctc14fx

Resources

• Manufacturer Spec Sheet
