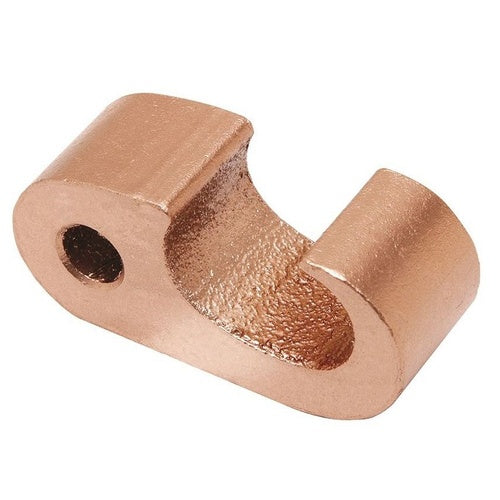

Burndy YGHP29C29 250 Compression Ground Tap

Overview

Burndy YGHP29C29 250 Compression Ground Tap

Product Specifications

• UPC: 78181022094
• Maximum Tap Conductor Size: 250 KCMIL
• Die Index: 997
• Body Material: Wrot Copper
• Approval: UL 96/467, CSA
• Additional Information: RoHS Compliant
• Catalog Number: YGHP29C29
• Brand Name: Burndy
• Model: YGHP-C
• Shape: C
• Conductor Material: Copper
• Minimum Run Conductor Size: 1/0 AWG Stranded
• Maximum Run Conductor Size: 250 KCMIL
• Minimum Tap Conductor Size: 3/0 AWG Stranded
• Catalog Description: CU COMPRESSION GROUND ROD CONNECTOR, 3/0 STR - 250 KCMIL, 1/2" - 5/8" ROD DIA.
• Category: Large Terminals & Connectors
• Full Technical Description: 1/0 AWG Stranded min. Run Conductor Size; 250 kcmil Max. Run Conductor Size; 3/0 AWG Stranded min. Tap Conductor Size; 250 kcmil Max. Tap Conductor Size; C Shape; Copper Conductor Material; UL 96/467, CSA Approval; Wrot Copper Body Material; 997 Die Index; HYGROUND[R], HYTAP[TM] Brand; RoHS Compliant; YGHP-C Model
• Made In Usa: Yes
• Manufacturer: Burndy Products
• Manufacturer Brand: Burndy Products
• Proposition 65 Warning (Ca): Warning: This product can expose you to chemicals including lead and lead compounds, which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.
• Sub Category: Compression Cable Tap
• Unspsc: 39121427
• UPC 12 Digit: 781810220948
• SKU Name: bur yghp29c29
