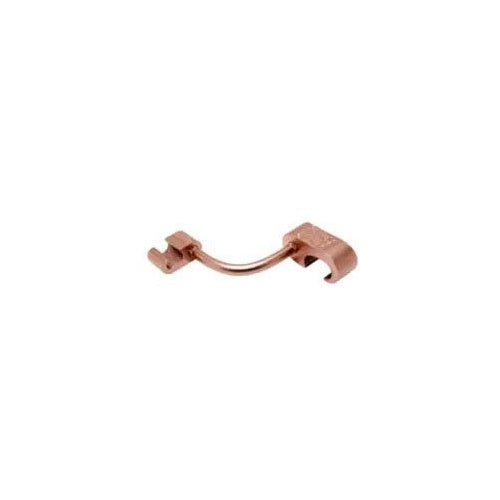

Burndy YGL34C29 500Mcm Cross Connector

Overview

Burndy YGL34C29 500Mcm Cross Connector

Product Specifications

• UPC: 78181022004
• Catalog Number: YGL34C29
• Brand Name: HYGROUND[R]
• Material: Copper
• Cable Size: 250 to 500 KCMIL (Side A), 2 AWG Stranded to 250 KCMIL (Side B)
• Die Index: 997/998
• Approval: UL 467, CSA
• Additional Information: RoHS Compliant; Application Direct Burial; Rebar Size 5 to 6 AWG (Side A); Rod Size 5/8 to 3/4 Inch
• Catalog Description: COPPER COMPRESSION CROSS GRID CONNECTOR, 250 KCMIL - 500 KCMIL OR 5/8" - 3/4" GROUND ROD OR # 5 - 6 REBAR, 2 AWG (STR.) - 250 KCMIL.
• Category: Large Terminals & Connectors
• Full Technical Description: Copper Material; 250 to 500 kcmil (Side A), 2 AWG Stranded to 250 kcmil (Side B) Cable Size; UL 467, CSA Approval; 997/998 Die Index; Hyground [R] Brand; RoHS Compliant; Application Direct Burial; Rebar Size 5 to 6 AWG (Side A); Rod Size 5/8 to 3/4 Inch
• Made In Usa: Yes
• Manufacturer: Burndy Products
• Manufacturer Brand: Burndy Products
• Proposition 65 Warning (Ca): Warning: This product can expose you to chemicals including lead and lead compounds, which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.
• Sub Category: Two Way Compression Grounding Connector
• Unspsc: 39121427
• UPC 12 Digit: 781810220047
• SKU Name: bur ygl34c29
