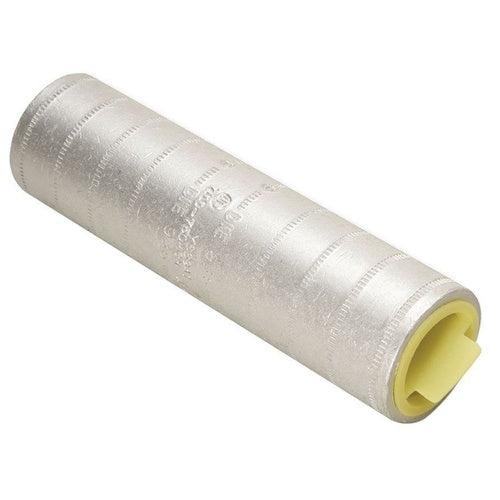

Burndy YS39AM1 750Mcm Butt Splice

Name: Burndy YS39AM1 750Mcm Butt Splice
Brand: Industrial Fittings Now
Price: 136.20 USD

Quantity

Industrial Fittings Now

Product Description

Catalog Description: 750 KCMIL AL SPLICE, AL9CU, INTERNAL CHAMFER, TIN PLATED, PREFILLED PENETROX, END CAP, UL/CSA, 90C, UP TO 35KV, RED COLOR CODE, 301 DIE INDEX.
Full Technical Description: Butt Type; 5.58 Inch; 5.58 Length in Inch; 1.6 Inch Outer Diameter; Copper Conductor Material; UL 468-A, UL 468-B, CSA Approval; 600 V to 35 kV Voltage Rating; Tin Plated Aluminum Body Material; 700 to 750 kcmil, 900 kcmil (Compact) Conductor Size; Red Color Code; Long With Belled End Barrel Type; HYLINK[T], BURNDY[R] Brand; RoHS Compatible; Wire Strip Length 2 7/8 Inch; Die Index 301; Temperature Rating 90 Deg C; Used on Aluminum to Aluminum, Aluminum to Copper, Copper to Copper Conductor Combination; YS Model
Manufacturer: BURNDY PRODUCTS
Sub Category: Compression Cable Splice
Unspsc: 39121449
UPC 12 Digit: 781810766002
SKU Name: bur ys39am1
