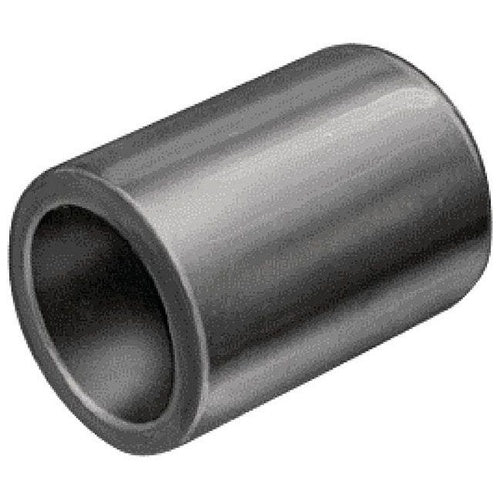

Burndy YSM6C 6 Awg Parallel Splice

Overview

Burndy YSM6C 6 Awg Parallel Splice

Product Specifications

• UPC: 78181080578
• Approval: UL, CSA
• Additional Information: RoHS Compatible; Wire Strip Length 1/2 Inch
• Catalog Number: YSM6C
• Brand Name: HYLINK[TM]
• Model: YSM
• Type: Parallel, Short-Barrel
• Length: 0.44 Inch
• Conductor Size: 14 to 12 AWG Solid/Stranded (Copper), 10380 to 26813 Circular mil
• Insulation Type: Non-Insulated
• Material: Electrolytic Tin Plated Copper
• Catalog Description: COPPER COMPRESSION PARALLEL SPLICE, 10380-26813 CIRCULAR MIL, 0.44" SPLICE LENGTH, SHORT BARREL, TIN PLATED.
• Category: Large Terminals & Connectors
• Full Technical Description: Parallel, Short-Barrel Type; Electrolytic Tin Plated Copper Material; 0.44 Inch; UL, CSA Approval; 14 to 12 AWG Solid/Stranded (Copper), 10380 to 26813 Circular mil Conductor Size; Non-Insulated Insulation Type; HYYLINK[TM] Brand; RoHS Compatible; Wire Strip Length 1/2 Inch; YSM Model
• Made In Usa: Yes
• Manufacturer: Burndy Products
• Manufacturer Brand: Burndy Products
• Sub Category: Splice Connector
• Unspsc: 39121449
• UPC 12 Digit: 781810805787
• SKU Name: bur ysm6c
