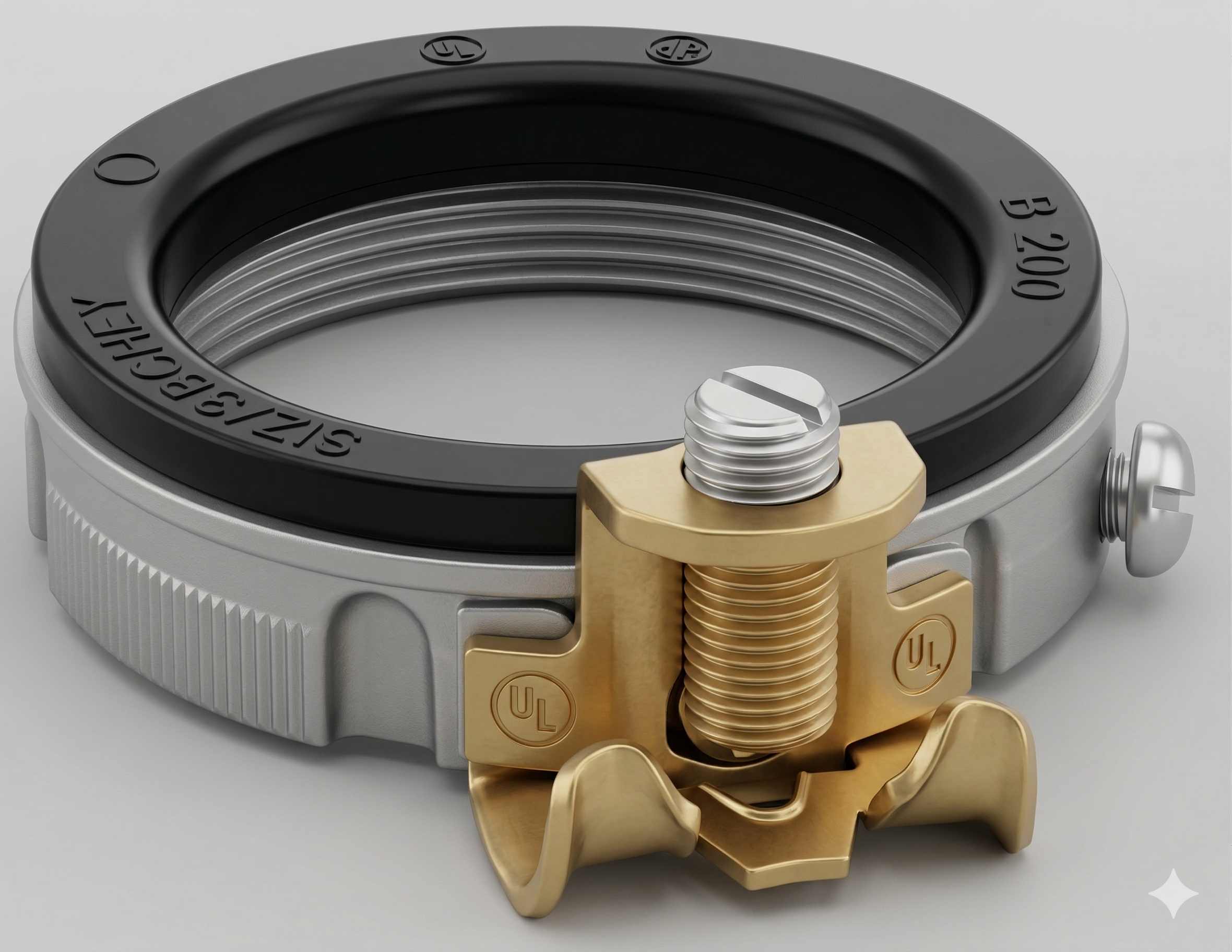

OZ-Gedney ABLG-6124 6" Aluminum Ground Bushing

Overview

OZ-Gedney ABLG-6124 6" Aluminum Ground Bushing

Product Specifications

• UPC: 78312601167
• Throat Type: Phenolic Insulated
• Diameter: 7-3/8 Inch
• Height: 1-3/8 Inch
• Material: Aluminum Body, Stainless Steel Screw
• Approval: UL 467/514B, CSA 22.2
• Used On: Threaded Rigid Conduit/IMC
• Additional Information: Applicable Standard W-F-408E, NEMA FB-1
• Catalog Number: ABLG-6124
• Brand Name: Copper Plus[TM]
• Model: ABLG
• Type: Threaded, Set Screw
• Trade Size: 6 Inch
• Wire Size: 6 AWG Solid/Stranded to 4/0 AWG Stranded
• Lug Type: Lay-In, Tin Plated Copper Saddle
• Conductor Material: Copper/Aluminum
• Catalog Description: CONDUIT HARDWARE, BUSHINGS, INSULATING, TRADE SIZE: 6 INCH, MATERIAL: COPPER FREE ALUMINUM, CONNECTION TYPE: SET-SCREW, MAXIMUM TEMPERATURE RATING: 150 DEGREE C, FEATURES: FOR RIGID AND IMC, OUTSIDE DIAMETER: 7 3/8 INCH, WIDTH: 1 3/8 INCH, GROUNDING WIRE
• Category: Rigid Conduit Fittings - Aluminum
• Full Technical Description: Threaded, Set Screw Type; Aluminum Body, Stainless Steel Screw Material; 1-3/8 Inch; Threaded Rigid Conduit/Imc Used on; 6 AWG Solid/Stranded to 4/0 AWG Stranded Wire Size; Copper/Aluminum Conductor Material; UL 467/514B, CSA 22.2 Approval; 7-3/8 Inch Diameter; 6 Inch Trade Size; Phenolic Insulated Throat Type; Lay-in, Tin Plated Copper Saddle Lug Type; Copper PLUS[TM] Brand; Applicable Standard W-F-408E, NEMA FB-1; ABLG Model
• Manufacturer: O-Z Gedney
• Manufacturer Brand: O-Z Gedney
• Sub Category: Grounding Bushing
• Unspsc: 39121312
• UPC 12 Digit: 783126011678
• SKU Name: ozg ablg6124

Resources

• Manufacturer Spec Sheet
