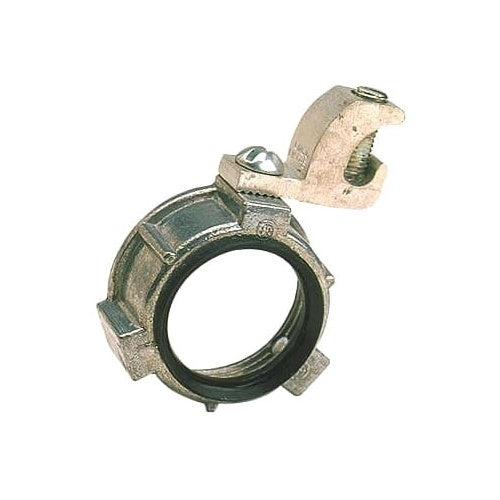

Steel City BG205 1-1/2" Grounding Bushing, Rigid/Imc, Die-Cast, Insulated

Overview

Steel City BG205 1-1/2" Grounding Bushing, Rigid/Imc, Die-Cast, Insulated

Product Specifications

• UPC: 78599190677
• Throat Type: Insulated
• Material: Die-Cast Zinc
• Standard Package: 50 per Outer Pack
• Approval: UL
• Used On: Rigid/IMC Conduit
• Catalog Number: BG205
• Brand Name: Steel City
• Model: BG
• Type: Threaded
• Trade Size: 1-1/2 Inch
• Wire Size: 8 to 1/0 AWG
• Lug Type: Lay-In, Aluminum
• Conductor Material: Copper/Aluminum
• Catalog Description: BUSHING, INSULATED GROUNDING, TRADE SIZE 1-1/2 INCH, GROUNDING LUG WIRE SIZE 8 AWG - 1/0 AWG, ZINC DIE CAST, FOR USE WITH RIGID/IMC CONDUIT.
• Category: Rigid Conduit Fittings - Steel
• Full Technical Description: Threaded Type; Die-Cast Zinc Material; Rigid/Imc Conduit Used on; 8 to 1/0 AWG Wire Size; Copper/Aluminum Conductor Material; UL Approval; 50 Per Outer Pack Standard Package; 1-1/2 Inch Trade Size; Insulated Throat Type; Lay-in, Aluminum Lug Type; BG Model
• Manufacturer: ABB, Inc. - Thomas & Betts
• Manufacturer Brand: T&B Steel City/Kindorf
• Sub Category: Grounding Bushing
• Unspsc: 39121312
• UPC 12 Digit: 785991906776
• SKU Name: stlcity bg205

Resources

• Manufacturer Spec Sheet
