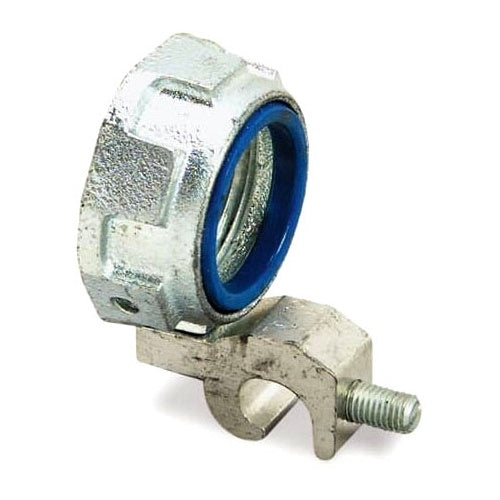

T&B 3863 Grounding & Bndg Bushing

Overview

T&B 3863 Grounding & Bndg Bushing

Product Specifications

• UPC: 78621003863
• Diameter: 4.781 Inch
• Height: 0.975 Inch
• Material: Electro Zinc Plated Cast Malleable Iron
• Standard Package: 5
• Approval: UL, CSA
• Used On: Rigid Conduit/IMC
• Additional Information: Insulator Material Thermoplastic; Throat Size 3.193 Inch; Temperature Rating 150 Deg C
• Catalog Number: 3863
• Model: 3870
• Type: Threaded, Set Screw
• Trade Size: 3-1/2 Inch
• Wire Size: 8 to 2/0 AWG
• Lug Type: Lay-In, Tin Plated Aluminum
• Conductor Material: Copper/Aluminum
• Throat Type: Insulated
• Catalog Description: 3-1/2 INCH THREADED INSULATED GROUNDING BUSHING, IRON, ELECTRO ZINC PLATED, WIRE RANGE 8 TO 2/0, THERMOPLASTIC INSULATOR FOR USE WITH RIGID/IMC CONDUIT
• Category: Rigid Conduit Fittings - Steel
• Full Technical Description: Threaded, Set Screw Type; Electro Zinc Plated Cast Malleable Iron Material; 0.975 Inch; Rigid Conduit/Imc Used on; 8 to 2/0 AWG Wire Size; Copper/Aluminum Conductor Material; UL, CSA Approval; 4.781 Inch Diameter; 5 Standard Package; 3-1/2 Inch Trade Size; Insulated Throat Type; Lay-in, Tin Plated Aluminum Lug Type; Insulator Material Thermoplastic; Throat Size 3.193 Inch; Temperature Rating 150 Deg C; 3870 Model
• Made In Usa: Yes
• Manufacturer: ABB, Inc. - Thomas & Betts
• Manufacturer Brand: T&B Corp.
• Sub Category: Grounding Bushing
• Unspsc: 39121312
• UPC 12 Digit: 786210038636
• SKU Name: t&b 3863

Resources

• Manufacturer Spec Sheet
