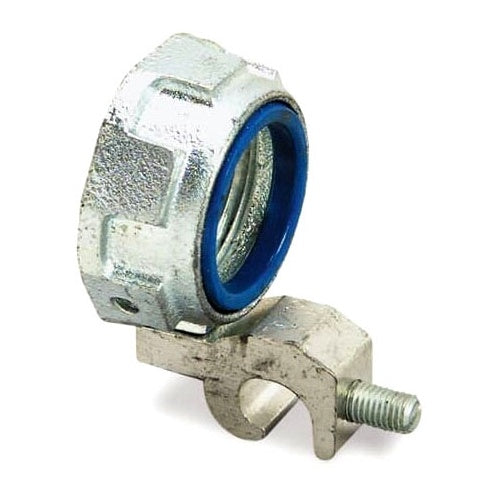

T&B 3870-TB 1/2" Insulated Ground Bushing W/14-4 Range

Overview

T&B 3870-TB 1/2" Insulated Ground Bushing W/14-4 Range

Product Specifications

• UPC: 78621003870
• Diameter: 1.125 Inch
• Height: 0.657 Inch
• Material: Electro Zinc Plated Cast Malleable Iron
• Standard Package: 100
• Approval: UL, CSA
• Used On: Rigid Conduit/IMC
• Additional Information: Insulator Material Thermoplastic; Throat Size 0.56 Inch; Temperature Rating 150 Deg C
• Catalog Number: 3870-TB
• Model: 3870
• Type: Threaded, Set Screw
• Trade Size: 1/2 Inch
• Wire Size: 14 to 4 AWG
• Lug Type: Lay-In, Tin Plated Aluminum
• Conductor Material: Copper/Aluminum
• Throat Type: Thermoplastic Insulated
• Catalog Description: 1/2 INCH THREADED INSULATED GROUNDING BUSHING, IRON, ELECTRO ZINC PLATED, WIRE RANGE 14 TO 4, THERMOPLASTIC INSULATOR FOR USE WITH RIGID/IMC CONDUIT
• Category: Rigid Conduit Fittings - Steel
• Full Technical Description: Threaded, Set Screw Type; Electro Zinc Plated Cast Malleable Iron Material; 0.657 Inch; Rigid Conduit/Imc Used on; 14 to 4 AWG Wire Size; Copper/Aluminum Conductor Material; UL, CSA Approval; 1.125 Inch Diameter; 100 Standard Package; 1/2 Inch Trade Size; Thermoplastic Insulated Throat Type; Lay-in, Tin Plated Aluminum Lug Type; Insulator Material Thermoplastic; Throat Size 0.56 Inch; Temperature Rating 150 Deg C; 3870 Model
• Made In Usa: Yes
• Manufacturer: ABB, Inc. - Thomas & Betts
• Manufacturer Brand: T&B Corp.
• Sub Category: Grounding Bushing
• Unspsc: 39121312
• UPC 12 Digit: 786210038704
• SKU Name: t&b 3870tb
