Overview

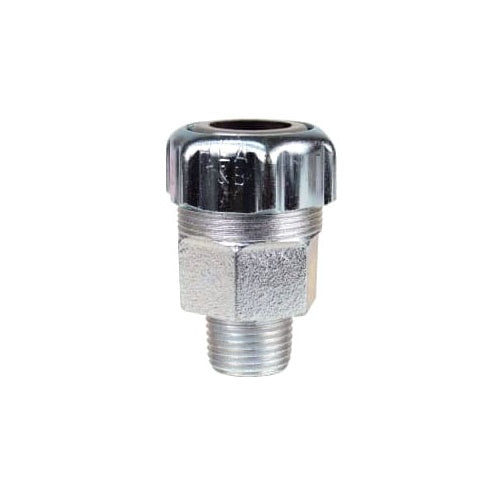

T&B 10466 Malleable Fitting Watertight- 1/2"

Product Specifications

• UPC: 78621030751
• Application: Hazardous Location
• Approval: UL, CSA
• Additional Information: Throat Diameter 0.615 Inch
• Catalog Number: 10466
• Brand Name: Star Teck[R]
• Type: Straight
• Hub Size: 1/2 Inch
• Cable Type: Jacketed Metal Clad Cable
• Cable Size: 0.875 to 0.985 Inch
• Constructional Feature: Water Tight
• Material: Malleable Iron
• Catalog Description: WATERTIGHT FITTING MADE OF MALLEABLE IRON WITH A HUB THREAD SIZE OF 1/2 INCH CABLE JACKET OUTSIDE DIAMETER IS 0.875 TO 0.985 INCHES.
• Category: Bx, Mc, Armored Cable Fittings
• Full Technical Description: Straight Type; Malleable Iron Material; 1/2 Inch Hub Size; Jacketed Metal Clad Cable Cable Type; 0.875 to 0.985 Inch Cable Size; UL, CSA Approval; Hazardous Location Application; Water Tight; Throat Diameter 0.615 Inch
• Manufacturer: ABB, Inc. - Thomas & Betts
• Manufacturer Brand: T&B Corp.
• Sub Category: Metal Clad Cable Connector
• Unspsc: 39121311
• UPC 12 Digit: 786210307510
• SKU Name: 10466 t & b

Resources

• Manufacturer Spec Sheet
