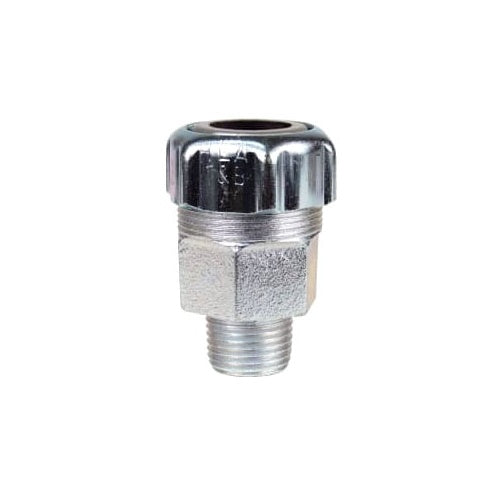

T&B 10471 Malleable Watertight Fitting 1-1/4" 1.625-1.875

Overview

T&B 10471 Malleable Watertight Fitting 1-1/4" 1.625-1.875

Product Specifications

• UPC: 78621010471
• Constructional Feature: Watertight
• Material: Malleable Iron
• Application: Hazardous Location
• Approval: UL, CSA
• Catalog Number: 10471
• Brand Name: Star Teck[R]
• Model: 10464
• Type: Straight, Threaded Male
• Hub Size: 1-1/4 Inch
• Cable Type: Teck/Jacketed Metal Clad Cable
• Cable Size: 1.625 to 1.875 Inch
• Diameter: 1.4 Inch
• Catalog Description: WATERTIGHT FITTING MADE OF MALLEABLE IRON WITH A HUB THREAD SIZE OF 1-1/4 INCHES CABLE JACKET OUTSIDE DIAMETER IS 1.625 TO 1.875 INCHES.
• Category: Bx, Mc, Armored Cable Fittings
• Full Technical Description: Straight, Threaded Male Type; Malleable Iron Material; 1-1/4 Inch Hub Size; Teck/Jacketed Metal Clad Cable Cable Type; 1.625 to 1.875 Inch Cable Size; UL, CSA Approval; Hazardous Location Application; 1.4 Inch Diameter; Watertight; 10464 Model
• Manufacturer: ABB, Inc. - Thomas & Betts
• Manufacturer Brand: T&B Corp.
• Sub Category: Metal Clad Cable Connector
• Unspsc: 39121311
• UPC 12 Digit: 786210104713
• SKU Name: 10471 t & b

Resources

• Manufacturer Spec Sheet
